Specifications

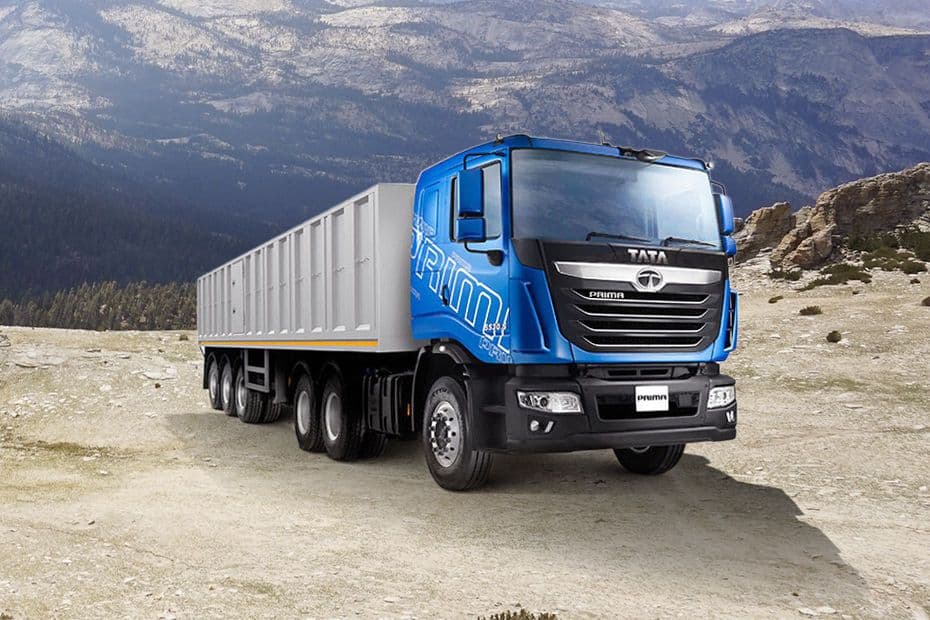

Tata Prima FL 5530.S

Explore Tata Prima FL 5530.S specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Prima FL 5530.S

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineCummins ISBe 6.7 Litre Engine
TransmissionManual
Power300 hp

Performance

Fuel Tank (Litres)557 Ltr
EngineCummins ISBe 6.7 Litre Engine
Fuel TypeDiesel
Emission NormsBS-VI
Max Torque1100 Nm @ 1100-1700 rpm
Mileage2.25-3.25 kmpl
Max Speed (km/h)90
Engine Cylinders6

Dimension

Overall Width (mm)2500
Ground Clearance (mm)229
Wheelbase (mm)3890
Axle Configuration6x4

Transmission & Loading Capacity

TransmissionManual
Payload (Kgs)40000 Kgs
GVW / GCW (Kgs)55000 kg
Kerb Weight (Kgs)15000
Gear Box9 Forward + 1 Reverse
Power SteeringYes
Clutch430 Dia , Single plate, Dry friction type, Pull type

Features

SteeringPower Steering
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringYes
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesAir Brakes
Front SuspensionParabolic leaf spring with rubber bush
Rear SuspensionTwo spring balance beam Bogie with semi elliptic multileaf spring & rubber Mounted torque rods and V-rod
ABSNo
Parking BrakesYes
Front AxleHeavy duty forged I-beam Reverse Elliot type
Rear AxleSingle reduction axle in pressed steel welded beam with differential carrier housing. Fully floating axle shafts

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionBox body
Cabin TypeDay and Sleeper Cabin
Tiltable CabinYes

Tyres

Number of Tyre22
Rear Tyre295/90R20
Front Tyre295/90R20

Others

ChassisYes
Battery(Volts)12 V
Fog LightsYes

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
