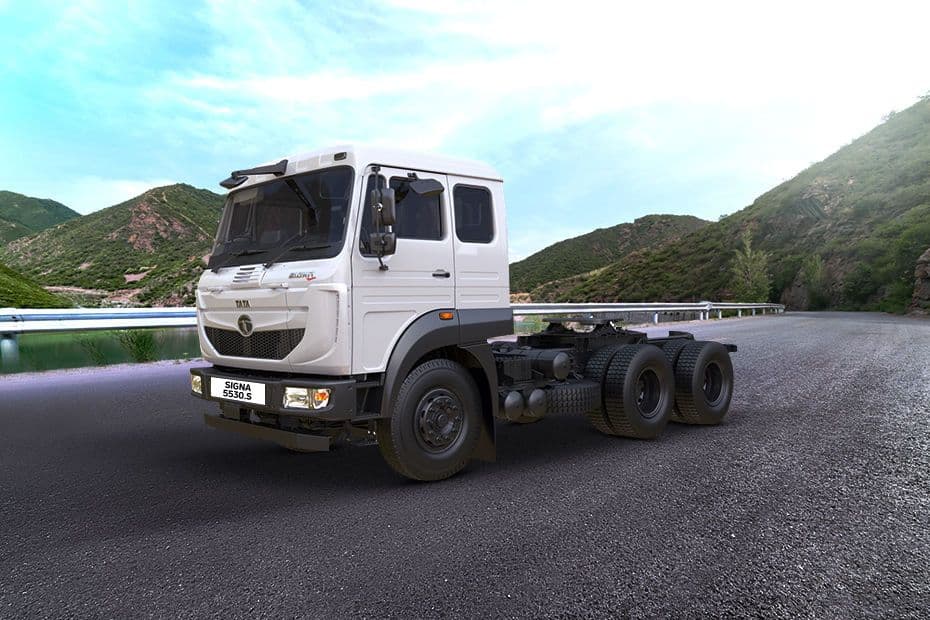

Tata Signa 5530.S

Your questions, answered

• What is the GCW and payload of the Tata Signa 5530.S?
  It is rated for a 55,000 kg GCW and a 40,000 kg payload, with a kerb weight of 15,000 kg.

• Which engine does the Signa 5530.S use?
  It uses a Cummins 6.7-litre (6702 cc) six-cylinder OBD-II BS6 diesel rated at 300 hp (224 kW).

• What mileage does the Signa 5530.S give?
  The claimed mileage is 2.25-3.25 kmpl, or about 1.8-2.5 kmpl in the city.

• What gearbox does it have?
  It uses the Tata G1150 9-speed direct-drive gearbox with a 430 mm clutch.

• What axle configuration does it have?
  It is a 6x4 with a Tata 21-tonne RA109 SRT single-reduction tandem rear axle.

• What rear suspension options are available?
  It is offered with bell crank or bogie rear suspension.

• Does the cabin have AC?
  Yes. The tiltable sleeper cabin has AC, D+2 seating, tilt-and-telescopic steering and telematics.

• Does it have ABS?
  No. It uses air brakes with a parking brake.

• What is the top speed, gradeability and turning radius?
  Top speed is 80 km/h, gradeability is 15% and the turning radius is 14,220 mm.

• What tyres does it use?
  The tractor runs on 10 tyres of size 295/90R20, and tubeless tyres are optional.
