Specifications

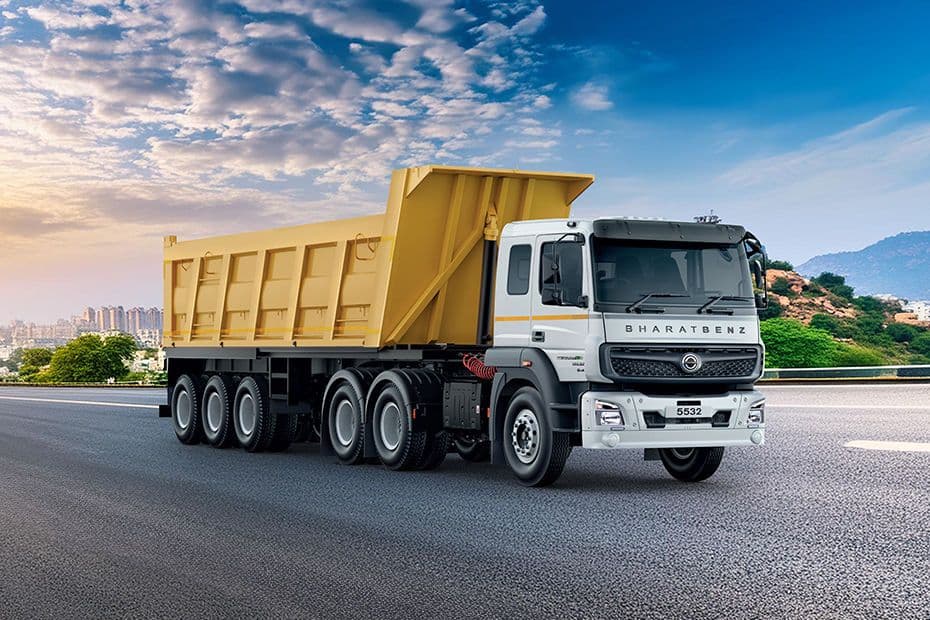

BharatBenz 5532T 6x4

Explore BharatBenz 5532T 6x4 specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

5532T 6x4

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineOM 926
TransmissionManual
Power236 kW

Performance

Fuel Tank (Litres)455/430 Ltr
EngineOM 926
Fuel TypeDiesel
Emission NormsBS VI-OBD-2
Max Torque1250 Nm
Mileage2.25-3.25 kmpl
Max Speed (km/h)80
Engine Cylinders6

Dimension

Overall Length (mm)6935
Overall Width (mm)2490
Overall Height (mm)2910
Ground Clearance (mm)255
Wheelbase (mm)3975
Axle Configuration6x4

Transmission & Loading Capacity

TransmissionManual
GVW / GCW (Kgs)55000 kg
Gear BoxG 131, 9F+1R, Mechanical Synchromesh Gears
Power SteeringYes
Clutch430, 4.5 mm dia, Single Dry Plate, Hydraulic Control

Features

SteeringHydraulic Power assisted
A/COptional
Cruise ControlYes
Navigation SystemNo
TelematicsNo
Tiltable SteeringYes
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesPneumatic, Foot Operated, Dual Line Drum Brakes
Front SuspensionParabolic type leaf spring with 2 hydraulic shock absorbers
Rear SuspensionParabolic Bogie With Bolsters For Tip Trailer Variants
ABSYes
Parking BrakesPneumatically operated hand control valve
Front AxleIF 7.0
Rear AxleIRT390-11

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionCustomizable body
Cabin TypeSleeper Cabin
Tiltable CabinYes

Tyres

Number of Tyre22
Rear Tyre295/90R20-Radial, 295/80R22.5-Tubeless Tyres
Front Tyre295/90R20-Radial, 295/80R22.5-Tubeless Tyres

Others

ChassisYes
Battery(Volts)24 V
Fog LightsNo
Loading Platform Area(Sq.ft)161.46

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
