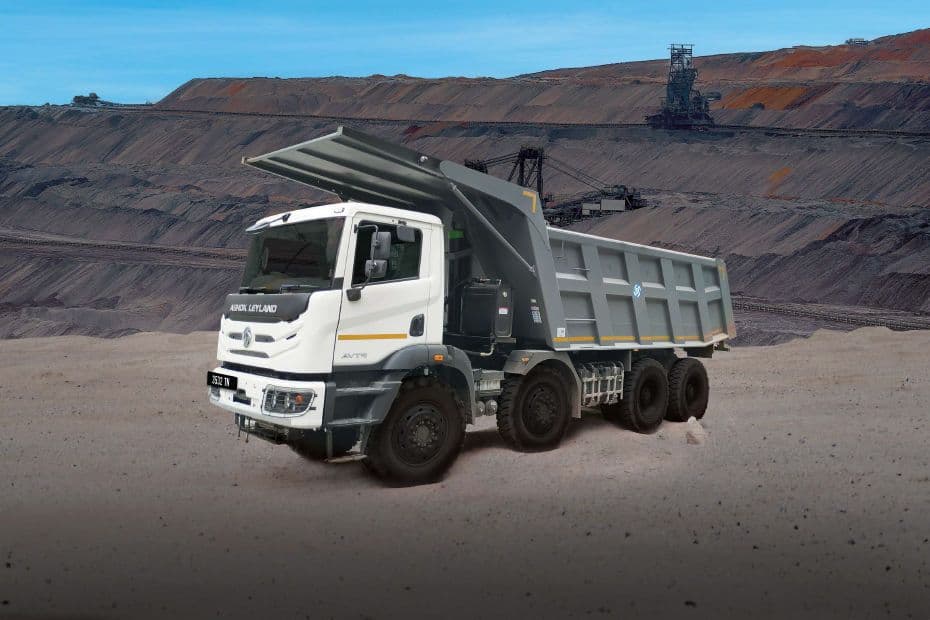

Ashok Leyland AVTR 3532-8x4

Your questions, answered

• Which engine does the Ashok Leyland AVTR 3532 8x4 use?
  It uses the 8000 cc A-series six-cylinder CRS BS6 diesel with i-Gen6 technology, producing 320 hp and 1200 Nm.

• What mileage does the AVTR 3532 give?
  The claimed mileage is 2.25-3.25 kmpl, about 1-2 kmpl in the city and 2-3 kmpl on the highway.

• What is the gradeability?
  Gradeability is 48.1%.

• Which body options are available?
  On the 5250 mm wheelbase it comes with a 23 cum box body or a 19 cum rock body.

• What gearbox does it have?
  It has a 9-speed gearbox with a 430 mm clutch and an air-assisted hydraulic booster.

• What rear axle does it use?
  It uses a hub-reduction rear axle with a 7.2:1 ratio on a heavy-duty bogie.

• What is the ground clearance?
  Ground clearance is 310 mm.

• Does it have ABS?
  Yes. It has full air dual-line brakes with ABS and automatic slack adjusters.

• What is the fuel tank capacity?
  It has a 300-litre fuel tank.

• What tyres does it use?
  It runs on 12 tubeless 11x20 mining lug tyres.
