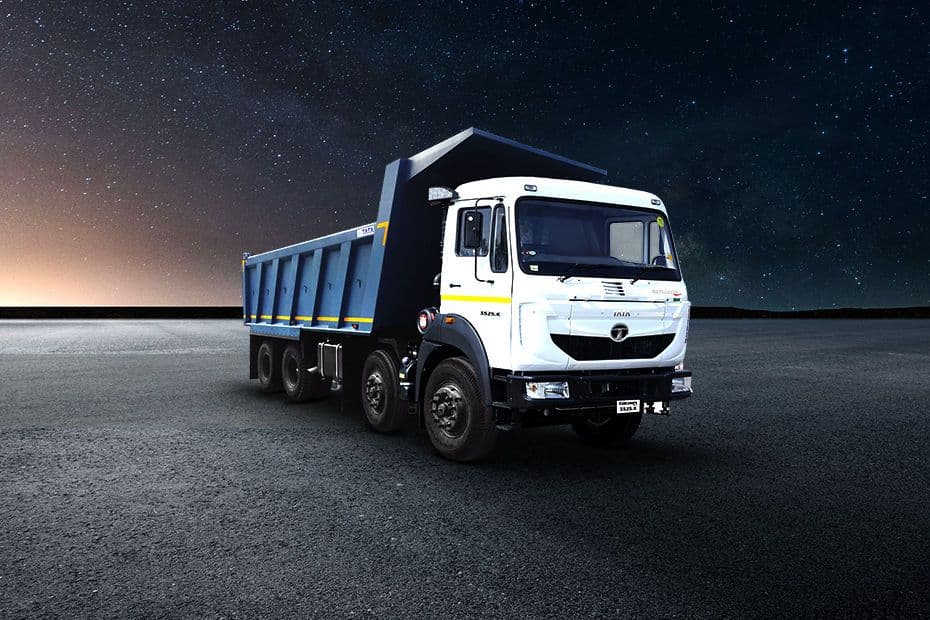

Tata Signa 3523.TK

Your questions, answered

• What is the payload of the Tata Signa 3523.TK?
  It carries a 26,000 kg payload, with a GVW of 35,000 kg and a kerb weight of 9,000 kg.

• Which engine does the Signa 3523.TK use?
  It uses a Cummins ISBe 5.6-litre (5635 cc) six-cylinder BS-VI diesel producing 220 hp and 850 Nm.

• What mileage does the Signa 3523.TK give?
  The claimed mileage is 2.5-3.5 kmpl, and it has a 300-litre fuel tank.

• What gearbox does it have?
  It has a G1150 9-speed manual gearbox with a crawler gear and one reverse, plus a 380 mm push-type clutch.

• What is the body size?
  It comes with a 20 cubic metre box body on a 5580 mm wheelbase.

• What are its dimensions?
  It is 8571 mm long, 2510 mm wide and 2961 mm tall, with 230 mm ground clearance.

• What is the turning radius and top speed?
  The turning radius is 9,800 mm and the top speed is 80 km/h.

• Does the Signa 3523.TK have ABS?
  Yes. It gets ABS along with Tata's new iCGT brakes and a parking brake.

• What axles does it use?
  It has a forged I-beam drop-beam front axle and an extra-heavy-duty single-reduction rear axle with a differential lock.

• Does the cabin have AC?
  AC is optional. The hydraulically tiltable day cabin has tilt-and-telescopic power steering, a 6-way adjustable driver seat, a driver information display and telematics.

• What tyres does it use?
  It runs on 12 tyres of size 295/90 R20.
