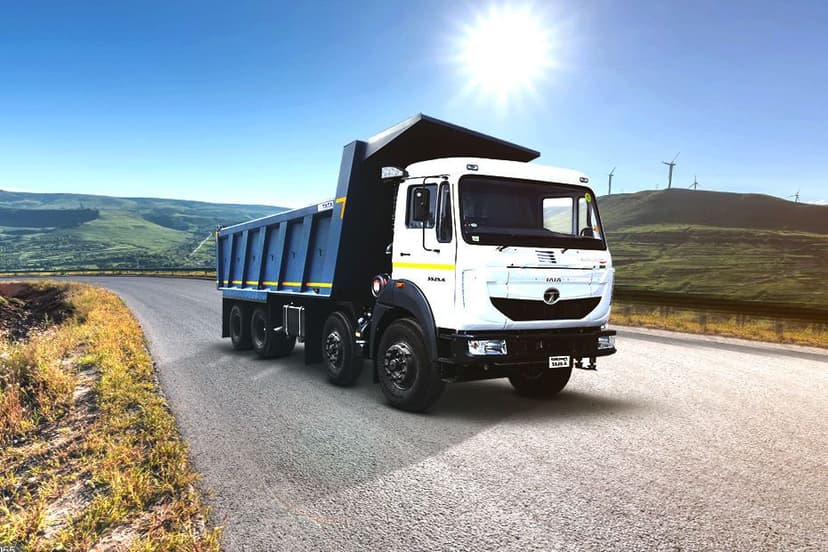

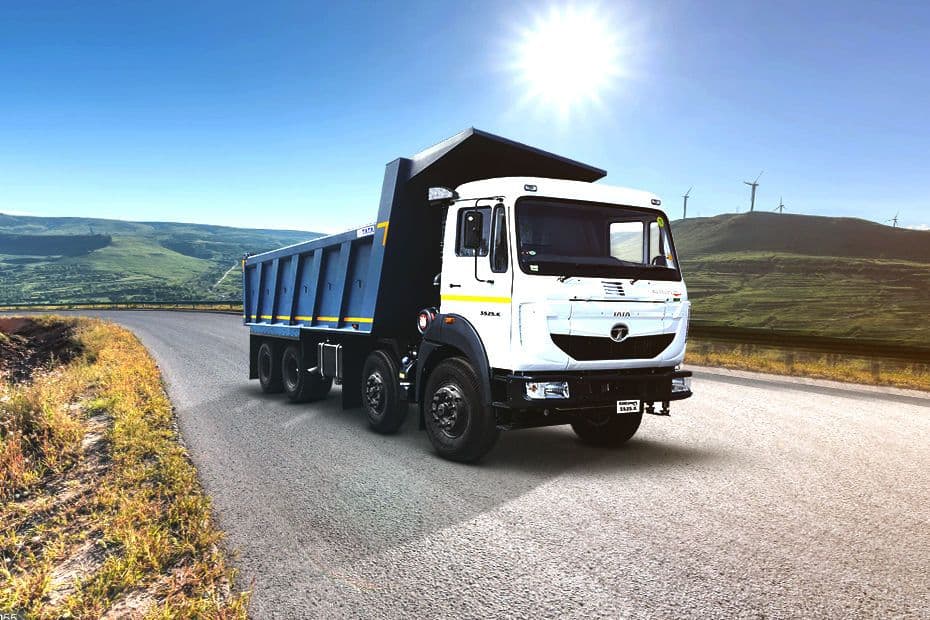

Tata Signa 3525.K/.TK

Your questions, answered

• What is the payload of the Tata Signa 3525.K?
  It carries a 26,000 kg payload, with a GVW of 35,000 kg and a kerb weight of 9,000 kg.

• Which engine does the Signa 3525.K use?
  It uses the Cummins ISBe 6.7-litre (6692 cc) six-cylinder BS VI diesel producing 250 hp and 950 Nm.

• What mileage does the Signa 3525.K give?
  The claimed mileage is 2.5-3.5 kmpl, and it has a 300-litre fuel tank.

• How is the Signa 3525.K different from the 3523.K?
  The 3525 uses the larger 6.7-litre Cummins engine with 250 hp and 950 Nm, compared with the 5.6-litre, 220 hp and 850 Nm unit in the 3523.

• What gearbox does it have?
  It has a 9-speed manual gearbox (9 forward, 1 reverse).

• What are its dimensions?
  It is 8446 mm long, 2510 mm wide and 2961 mm tall, with a 5580 mm wheelbase and 250 mm ground clearance.

• What body does it come with?
  It comes with a 22 cubic metre box body.

• Does it have ABS?
  Yes. It uses Tata's new iCGT brakes with ABS and a parking brake.

• What suspension does it use?
  It has heavy-duty parabolic leaf springs at the front and a heavy-duty bogie with inverted U-bolts at the rear, with Ultimaax suspension available as an option.

• What is the turning radius and top speed?
  The turning radius is 9,800 mm and the top speed is 60 km/h.

• What tyres does it use?
  It runs on 12 tyres of size 11x20 16PR.
