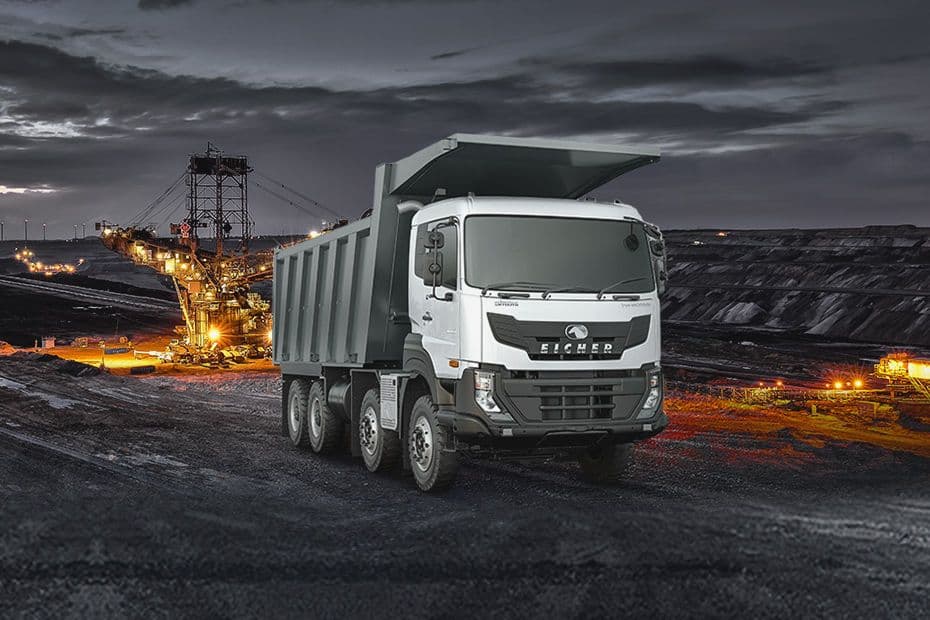

Eicher Pro 8035XM

Your questions, answered

• What is the payload of the Eicher Pro 8035XM?
  It carries a 22,800 kg payload, with a GVW of 35,000 kg and a kerb weight of 12,200 kg.

• Which engine does the Pro 8035XM use?
  It uses the 7698 cc six-cylinder VEDX8 BS-VI diesel producing 257 kW and 1350 Nm.

• What mileage does the Eicher Pro 8035XM give?
  The claimed mileage is 2.3-3.5 kmpl, and it has a 315-litre fuel tank.

• Is an automatic gearbox available?
  Yes. It is offered with the ET140S9 9-speed gearbox in both manual and AMT versions.

• Which body options are available?
  On the 5285 mm wheelbase it is offered with 18, 19 or 19.5 cum rock bodies, a 23 cum box body and a 26 cum coal body.

• What is the gradeability and ground clearance?
  Gradeability is 75% and ground clearance is 308 mm.

• What is the top speed and turning radius?
  Top speed is 80 km/h and the turning radius is 21,100 mm.

• What axles does it use?
  It has a heavy-duty hub-reduction tandem axle with a two-stage differential lock, and anti-roll bars at both ends.

• Does it have ABS?
  Yes. It uses S-cam dual-line brakes with ABS.

• Does the Pro 8035XM have a sleeper cabin?
  Yes. It has a tiltable sleeper cabin with AC, cruise control, telematics and a 6-way adjustable seat, and an air-suspended seat is optional.

• What tyres does it use?
  It runs on 12 mining lug tyres of size 12x20, and tubeless tyres are optional.
