Specifications

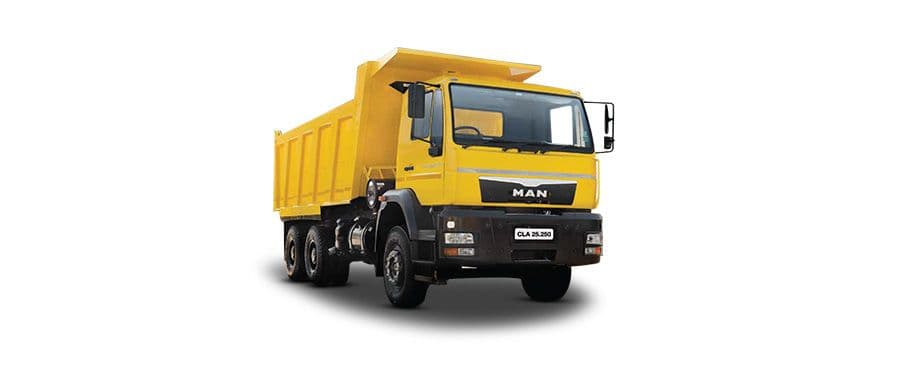

Man CLA 25.250 EVO 6X4

Explore Man CLA 25.250 EVO 6X4 specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

CLA 25.250 EVO 6X4

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineDi, Turbo Charged Intercooled
TransmissionManual
Power255

Performance

Fuel Tank (Litres)300 Ltr
EngineDi, Turbo Charged Intercooled
Fuel TypeDiesel
Emission NormsBS-IV
Max Torque950 Nm
Mileage6-8 kmpl
Max Speed (km/h)60
Engine Cylinders6

Dimension

Overall Length (mm)7487
Ground Clearance (mm)292
Wheelbase (mm)4525
Axle Configuration6x4

Transmission & Loading Capacity

TransmissionManual
Payload (Kgs)13145 Kgs
GVW / GCW (Kgs)25000 kg
Kerb Weight (Kgs)11855
Gear Box9 Forward + 1 Reverse
Power SteeringYes
ClutchSingle plate, Power Assisted

Features

SteeringPower Steering
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesAir Brakes
Front SuspensionSemi Eiliptical Leaf springs with Double Acting Shock absorbers
Rear SuspensionHeavy duty Boige Type Suspension
ABSYes
Parking BrakesNo
Front AxleHeavy Duty Straight Forged I-Beam type, Maintence free Hub Bearings
Rear AxleMan planetary Tandem Bogie With Hub Reduction Interaxle & stabliser bar

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionRock/Scoop Body
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre10
Rear Tyre11.00 X 20
Front Tyre11.00 X 20

Others

ChassisYes
Battery(Volts)12 V
Fog LightsYes

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
