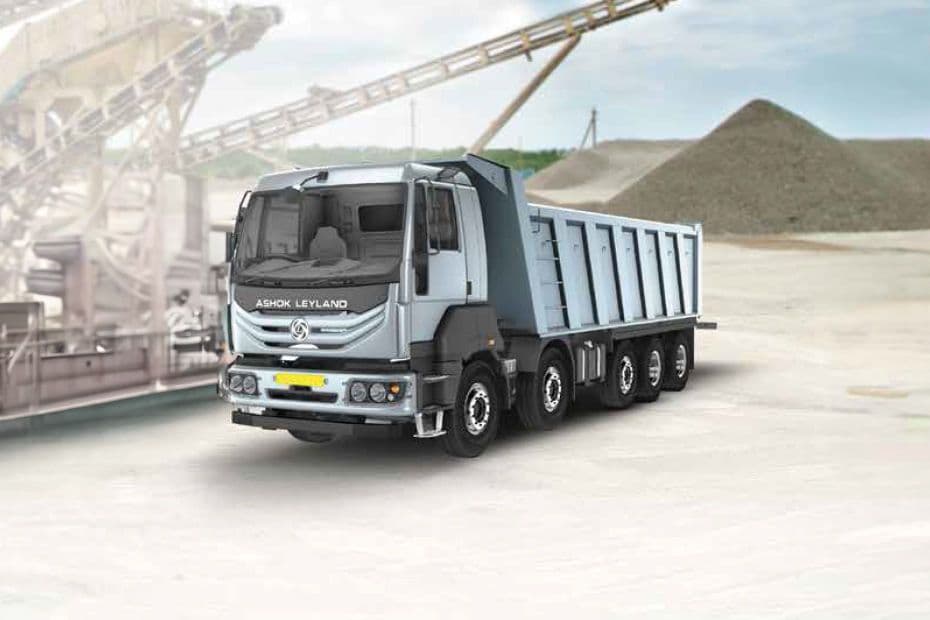

Ashok Leyland AVTR 4220-10x2

Your questions, answered

• What is the payload of the Ashok Leyland AVTR 4220 10x2 tipper?
  It carries a 29,000 kg payload, with a 42,000 kg GVW and a 10,000 kg kerb weight.

• Which engine does it use?
  It uses the 5660 cc six-cylinder H-series BS VI diesel with i-Gen6 technology, producing 200 hp and 700 Nm.

• What mileage does it give?
  The claimed mileage is 2.25-3.25 kmpl, and it has a 375-litre fuel tank.

• Which body options are available?
  On the 6600 mm wheelbase it is offered with a 24 or 26 cum box body or as a cab-chassis.

• What gearbox does it have?
  It has a 9-speed synchromesh gearbox with a 380 mm clutch and booster.

• Does it have ABS?
  Yes. It has full air dual-line brakes with ABS and automatic slack adjusters.

• What are its dimensions?
  It is 10,960 mm long, 2570 mm wide and 3165 mm tall, with 253 mm ground clearance and an 11,885 mm turning radius.

• What is the gradeability and top speed?
  Gradeability is 21.82% and the top speed is 60 km/h.

• Does it have AC?
  AC is optional.

• What tyres does it use?
  It runs on 12 tyres of size 295/90R20, and tubeless tyres are optional.
