Specifications

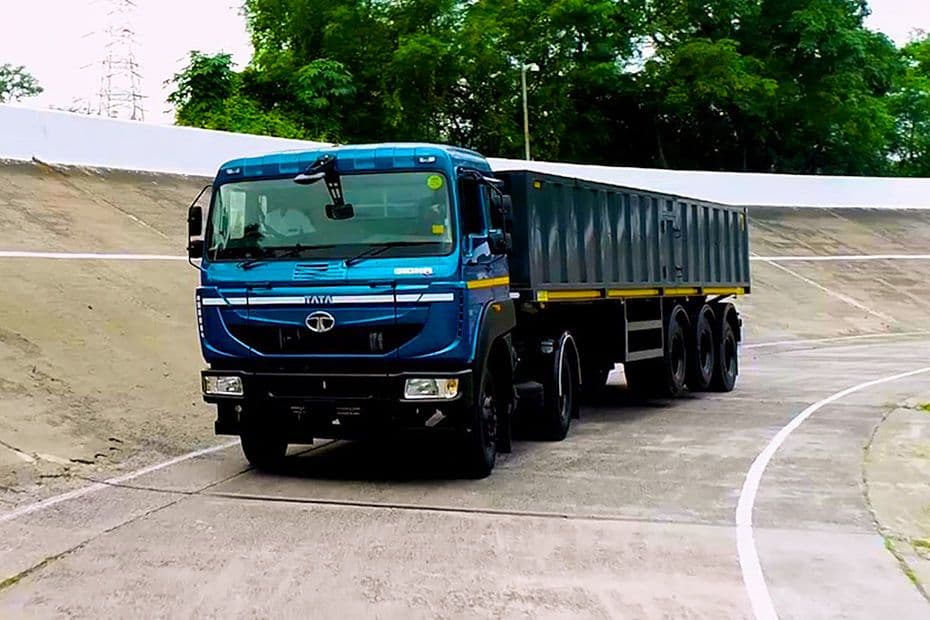

Tata Signa 5530.S 4x2

Explore Tata Signa 5530.S 4x2 specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Signa 5530.S 4x2

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineCummins ISBe 6.7L
TransmissionManual
Power300 hp

Performance

Fuel Tank (Litres)365 Ltr
EngineCummins ISBe 6.7L
Fuel TypeDiesel
Emission NormsBS-VI
Max Torque1100 Nm
Mileage2.25-3.25 kmpl
Max Speed (km/h)80
Engine Cylinders6

Dimension

Overall Length (mm)5653
Overall Width (mm)2565
Overall Height (mm)3020
Ground Clearance (mm)295
Wheelbase (mm)3320
Axle Configuration4x2

Transmission & Loading Capacity

TransmissionManual
Payload (Kgs)40000 Kgs
GVW / GCW (Kgs)55000 kg
Kerb Weight (Kgs)15000
Gear BoxTATA G1150 8F +1C + 1R
Power SteeringYes
Clutch430 mm Single Plate Dry Friction with Organic Lining

Features

SteeringPower Steering
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsYes
Tiltable SteeringYes
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesNew iCGT Brakes
Front SuspensionParabolic Leaf Spring
Rear SuspensionSemi-elliptical multi leaf spring
ABSNo
Parking BrakesGraduated valve controlled spring brake Acting on rear axle
Front AxleTATA 7T Reverse Elliot Type
Rear AxleTATA Heavy Duty Single Reduction RA114

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionDeck Body
Cabin TypeDay and Slepper Cabin
Tiltable CabinYes

Tyres

Number of Tyre16
Rear Tyre295/90R20
Front Tyre295/90R20

Others

ChassisYes
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
