Specifications

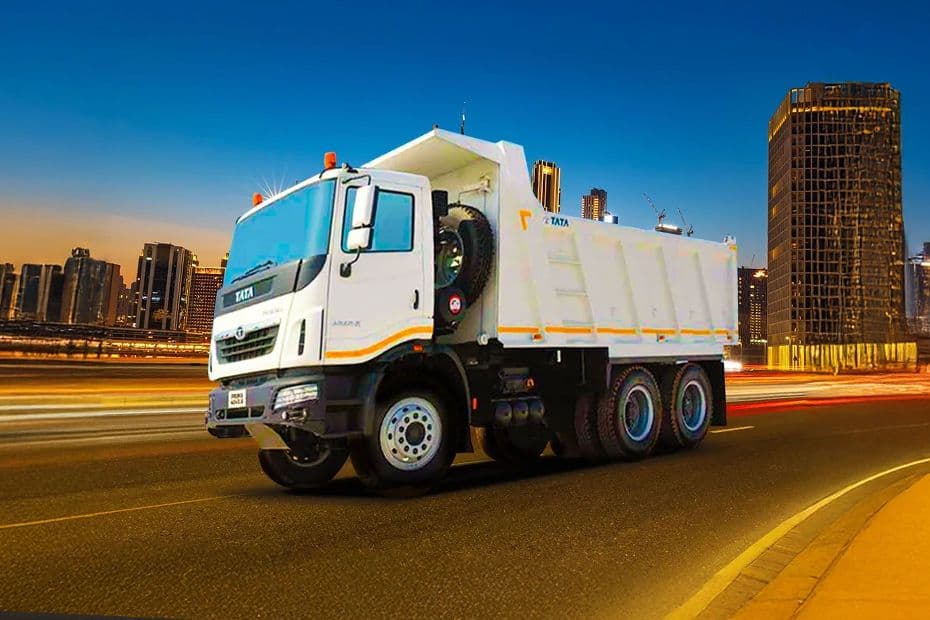

Tata Prima 4040.K

Explore Tata Prima 4040.K specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Prima 4040.K

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineCUMMINS ISLe 400, Water cooled, direct injection, turbocharged diesel engine
TransmissionManual
Power400 Hp

Performance

Fuel Tank (Litres)365 Ltr
EngineCUMMINS ISLe 400, Water cooled, direct injection, turbocharged diesel engine
Fuel TypeDiesel
Emission NormsE-V
Mileage2.5-3.5 kmpl
Max Speed (km/h)95
Engine Cylinders6
Turning Radius (mm)9175

Dimension

Overall Length (mm)8038
Overall Width (mm)2590
Overall Height (mm)3219
Ground Clearance (mm)353
Wheelbase (mm)4570
Axle Configuration6x4

Transmission & Loading Capacity

TransmissionManual
GVW / GCW (Kgs)40000 kg
Kerb Weight (Kgs)10200
Gear BoxZF 16S 1935 TD LHD GEN 4 with PTO
Power SteeringYes
Clutch430 dia

Features

SteeringIntegral Hydraulic Power Assisted Steering
Tiltable SteeringTilt & Telescopic
Seat TypeStandard
Adjustable Driver SeatYes
Seating CapacityD+2
Seat BeltsYes

Brakes & Suspension

BrakesFull Air Dual circuit - S Cam with ABS Auxillary Brake - Engine exhaust brake
Front SuspensionParabolic Leaf Spring
Rear SuspensionTwo spring balance beam Bogie with semi elliptic multi rubber Mounted Torque Rods & V-rod
ABSYes
Rear AxleTATA RA 109

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionBox body
Cabin TypeHVAC, Prima Cabin
Tiltable CabinYes

Tyres

Number of Tyre10
Rear Tyre12R24 -18PR
Front Tyre12R24 -18PR

Others

ChassisYes

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
