What is the GVW of the Tata Prima 4040.K?

It has a GVW of 40,000 kg and a kerb weight of 10,200 kg.

Which engine does the Prima 4040.K use?

It uses the Cummins ISLe 400, an 8.9-litre (8900 cc) six-cylinder turbocharged diesel producing 400 hp and 1700 Nm.

What gearbox does it have?

It uses a ZF 16S 1935 TD 16-speed manual gearbox with PTO and a 430 mm clutch.

What mileage does the Prima 4040.K give?

The claimed mileage is 2.5-3.5 kmpl, and it has a 365-litre fuel tank.

What is the top speed and gradeability?

Top speed is 95 km/h and gradeability is rated at 40% to 65%.

What are its dimensions?

It is 8038 mm long, 2590 mm wide and 3219 mm tall, with a 4570 mm wheelbase and 353 mm ground clearance.

What is the turning radius?

The turning radius is 9,175 mm.

What brakes does it have?

It has full air dual-circuit S-cam brakes with ABS, plus an engine exhaust brake as an auxiliary brake.

Does the cabin have AC?

Yes. The tiltable Prima cabin comes with HVAC, D+2 seating and tilt-and-telescopic steering.

What tyres does it use?

It runs on 10 radial mining tyres of size 12R24 18PR.

Prima 4040.K

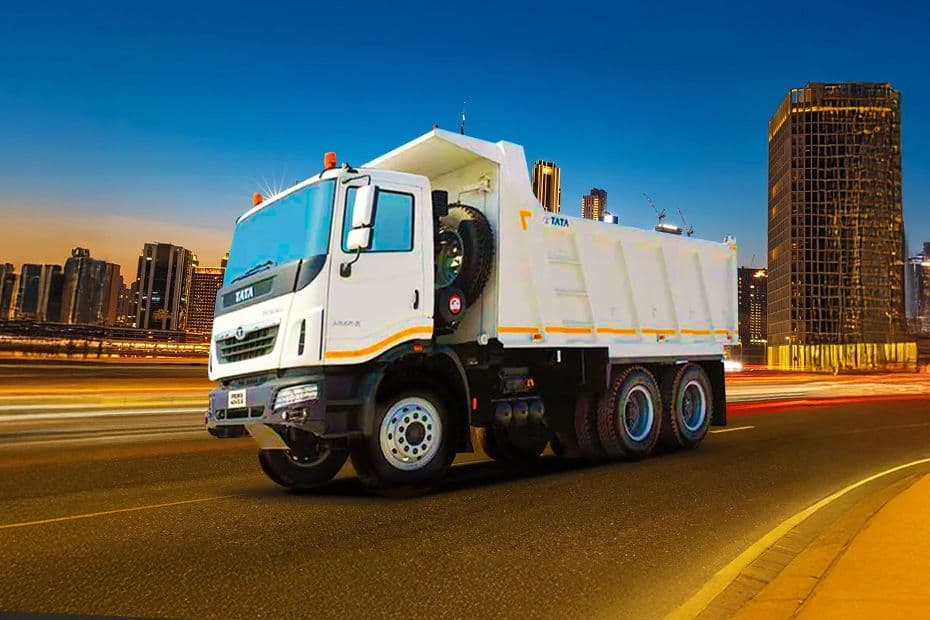

Tata Prima 4040.K

Name: Tata Prima 4040.K
Brand: Tata
Availability: InStock

The Tata Prima 4040.K is a heavy-duty 6x4 tipper with a 40,000 kg GVW, built for demanding mining and heavy construction. It is powered by the Cummins ISLe 400, an 8.9-litre turbocharged diesel making 400 hp and 1700 Nm, paired with a ZF 16S 1935 TD 16-speed gearbox with PTO. It can reach 95 km/h, with gradeability rated at 40% to 65%.

On a 4570 mm wheelbase with a box body, it rides on 12R24 radial mining tyres with a very high 353 mm ground clearance. Suspension is a parabolic front and a balance-beam bogie rear with torque rods, and it uses Tata's RA 109 rear axle. The tiltable Prima cabin comes with HVAC, D+2 seating, tilt-and-telescopic steering and ABS, plus an engine exhaust brake for long descents.

Price on Request

Ex-showroom Price

View Detailed Price

EMIEMI Calculator/monthEMI Calculator

Choose Your Variant

Explore variants. Find your perfect match.

Compare prices, features and specifications across all variants.

100% Verified

On-road Prices

Best Offers

Exclusive Deals

Easy EMI

Low Down Payment

Expert Support

Pros & Cons of Tata Prima 4040.K.

What we love

Big 8.9-litre Cummins ISLe diesel with 400 hp and 1700 Nm

ZF 16-speed gearbox with PTO

40,000 kg GVW with gradeability of 40% to 65%

Very high 353 mm ground clearance on 12R24 radial mining tyres

HVAC Prima cabin, ABS and an engine exhaust brake

Worth knowing

Mileage of about 2.5-3.5 kmpl

Listed with Euro V (E-V) emission norms

Manual gearbox with 16 ratios takes skill to use efficiently

Premium price and running costs

Your questions, answered

Can not find what you are looking for?

Ask our experts

What is the GVW of the Tata Prima 4040.K?
It has a GVW of 40,000 kg and a kerb weight of 10,200 kg.
Which engine does the Prima 4040.K use?
It uses the Cummins ISLe 400, an 8.9-litre (8900 cc) six-cylinder turbocharged diesel producing 400 hp and 1700 Nm.
What gearbox does it have?
It uses a ZF 16S 1935 TD 16-speed manual gearbox with PTO and a 430 mm clutch.
What mileage does the Prima 4040.K give?
The claimed mileage is 2.5-3.5 kmpl, and it has a 365-litre fuel tank.
What is the top speed and gradeability?
Top speed is 95 km/h and gradeability is rated at 40% to 65%.
What are its dimensions?
It is 8038 mm long, 2590 mm wide and 3219 mm tall, with a 4570 mm wheelbase and 353 mm ground clearance.
What is the turning radius?
The turning radius is 9,175 mm.
What brakes does it have?
It has full air dual-circuit S-cam brakes with ABS, plus an engine exhaust brake as an auxiliary brake.
Does the cabin have AC?
Yes. The tiltable Prima cabin comes with HVAC, D+2 seating and tilt-and-telescopic steering.
What tyres does it use?
It runs on 10 radial mining tyres of size 12R24 18PR.
