Specifications

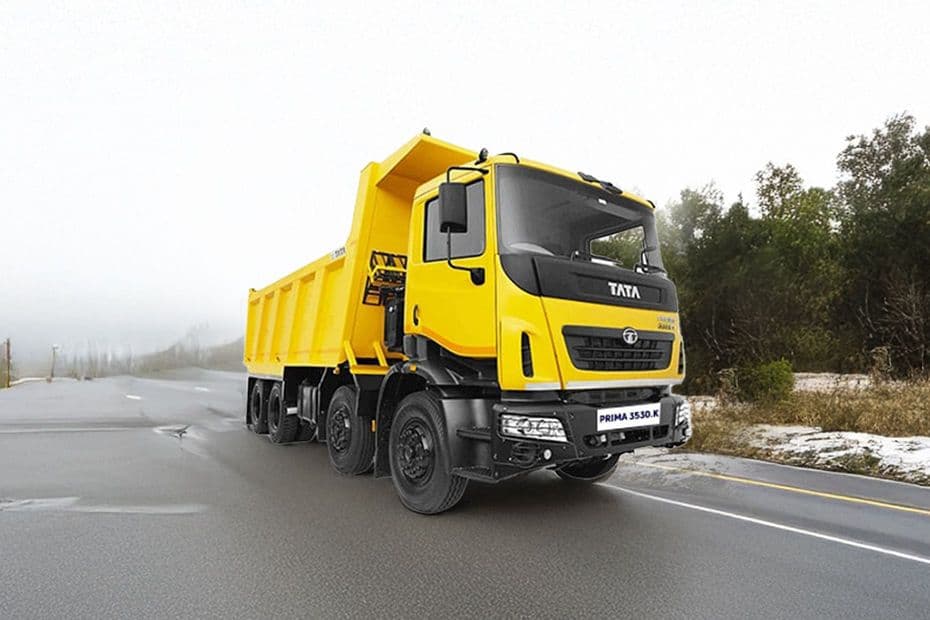

Tata Prima 3530.K SRT

Explore Tata Prima 3530.K SRT specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Prima 3530.K SRT

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineCummins 6.7 l OBD-II
TransmissionManual
Power224 kW

Performance

Fuel Tank (Litres)300 Ltr
EngineCummins 6.7 l OBD-II
Fuel TypeDiesel
Emission NormsBS-VI
Max Torque1100 Nm
Max Power224 kW
Engine Displacement (cc)6702 cc

Dimension

Wheelbase (mm)5200
Axle Configuration8x4

Transmission & Loading Capacity

TransmissionManual
GVW / GCW (Kgs)35000 kg
Gear BoxTATA G1150
Power SteeringYes
Clutch430 mm dia

Features

SteeringPower Steering
A/CYes
TelematicsYes
Tiltable SteeringTilt & Telescopic
Seat TypeStandard
Driver Information DisplayYes
Seating CapacityD+2
Seat BeltsYes

Brakes & Suspension

BrakesDrum Brakes
Rear SuspensionBOGIE / ULTIMAX Suspension
ABSYes
Parking BrakesYes
Front AxleHeavy Duty Forged I Beam reverse Elliot Type
Rear AxleSingle reduction heavy duty rear axle with differential lock

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionBox body
Cabin TypeDay Cabin
Tiltable CabinYes

Tyres

Number of Tyre12
Rear Tyre11x20 NT/11R20 Radial
Front Tyre11x20 NT/11R20 Radial

Others

ChassisYes

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
