Specifications

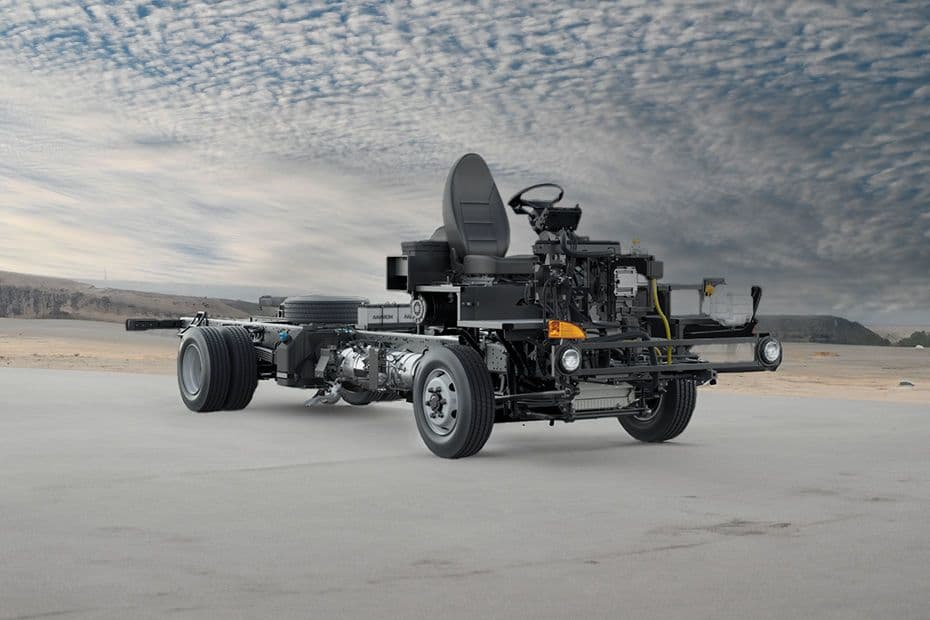

BharatBenz 1017 Chassis

Explore BharatBenz 1017 Chassis specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

1017 Chassis

Specifications & Features.

Key Specifications

Fuel Type
EngineFront
TransmissionManual
PowerYes

Others

LightsYes
Battery(Volts)24V 2x12V, 120Ah
First Aid KitYes

Safety

Rear BrakesAir Brakes
Front SuspensionParabolic Double acting telescopic shock absorber and anti roll bars
Rear SuspensionParabolic Double acting telescopic shock absorber and anti roll bars
Parking BrakesYes
Power SteeringYes
Seat BeltsYes
Front BrakesAir Brakes
Tubeless TyresYes

Design & Build

Chassis TypeCowl Chassis
Overall Width (mm)2199
Ground Clearance (mm)192
Front Overhang (mm)1193
Front Tyre235/75 R 17.5
Rear Tyre235/75 R 17.5
Wheelbase (mm)5300 mm
Overall Length (mm)8493

Performance

TransmissionManual
Gear Box6-Speed
Max Power170 hp
Max Torque520 Nm
Emission NormsBS-VI
Engine Displacement (cc)3907 cc
Engine4D34i Vertical In-line inter-cooled, turbo-charged
ClutchOrganic, Single dry plate,

Comfort

Driver Information DisplayYes
Adjustable Driver SeatYes
SteeringPower Steering
A/CYes
Tiltable SteeringYes
Seat TypeCushion Type, 2 way adjustable Mechanical

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
