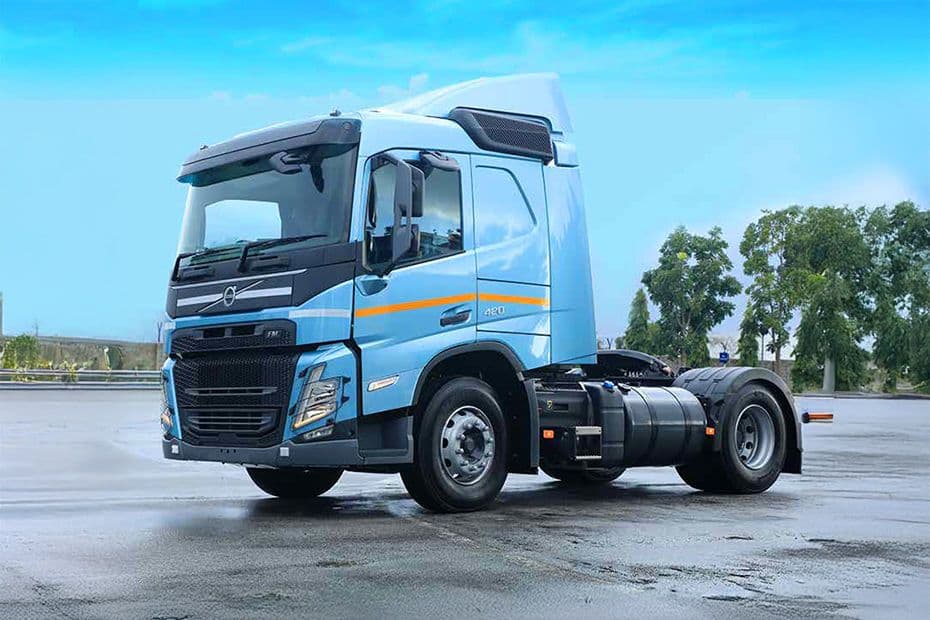

Volvo FM 420 4x2 Tractor Specifications, Performance & Features.

Specifications & Features.

Key Specifications

Fuel TypeDiesel

EngineSix-cylinder, in-line direct-injection diesel engine

TransmissionManual

Power420 Hp

Performance

Fuel Tank (Litres)405 Ltr

EngineSix-cylinder, in-line direct-injection diesel engine

Fuel TypeDiesel

Emission NormsBS-VI

Max Torque2100 Nm

Max Speed (km/h)80

Engine Cylinders6

Battery Capacity170 Ah

Dimension

Overall Length (mm)5690

Overall Width (mm)2534

Overall Height (mm)3994

Ground Clearance (mm)260

Wheelbase (mm)3500

Axle Configuration4x2

Transmission & Loading Capacity

TransmissionManual

Payload (Kgs)35000 Kgs

GVW / GCW (Kgs)49500 kg

Kerb Weight (Kgs)8420

Gear Box12 Forward + 4 Reverse

Power SteeringYes

Clutch430 mm dia, Power assisted push-type single plate friction disc

Features

SteeringHydraulic Power Steering

A/CYes

Cruise ControlYes

Navigation SystemNo

TelematicsYes

Tiltable SteeringTilt & Telescopic

Arm-restNo

Seat TypeStandard

Brakes & Suspension

BrakesZ-cam disc brakes with automatic adjustment

Front SuspensionParabolic leaf suspension with Double-action shock absorbers and stabilizers

Rear SuspensionElectronically controlled air suspension with 3 driving levels with Rubber insulated V-stays and reaction rods, stabilizer & two,shock absorbers

ABSYes

Parking BrakesYes

Front AxleHeavy duty steerable front axle

Rear AxleDriven single reduction solo axle with Differential lock - Inter wheels

Body Option & Cabin Type

Chassis TypeChassis with Cabin

Body OptionCustomizable body

Cabin TypeSleeper Cabin

Tiltable CabinYes

Tyres

Number of Tyre6

Rear Tyre295/80R22.5 Radial

Front Tyre295/80R22.5 Radial

Others

ChassisYes

Battery(Volts)24 V

Alternator (Amps)110 A

Fog LightsYes

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
