Specifications

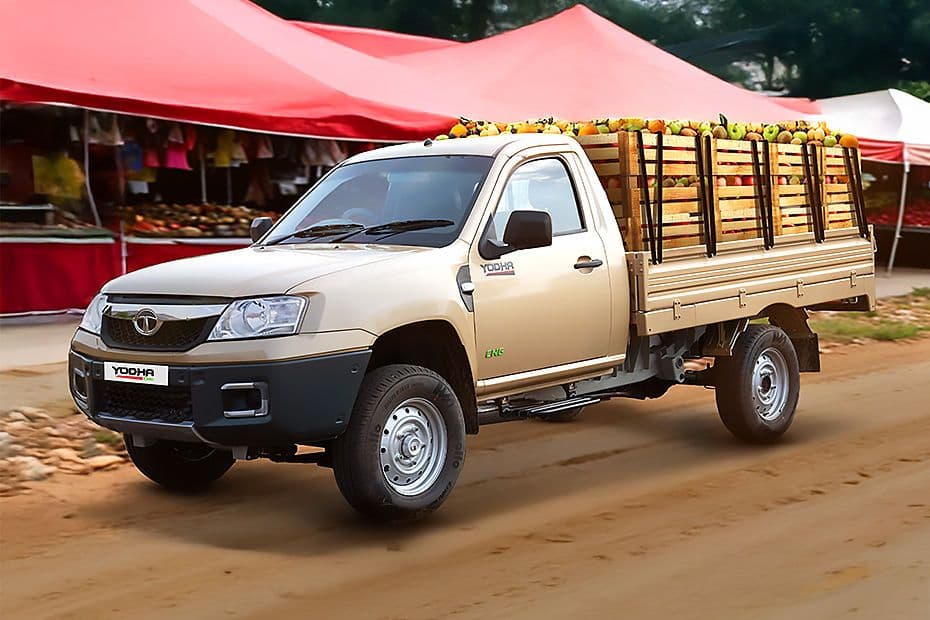

Tata Yodha CNG

Explore Tata Yodha CNG specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Yodha CNG

Specifications & Features.

Key Specifications

Fuel TypeCNG
EngineTata 4SP SGI NA CNG
TransmissionManual
Power74 hp

Performance

Fuel Tank (Litres)90 Ltr
EngineTata 4SP SGI NA CNG
Fuel TypeCNG
Max Torque200 Nm
Max Speed (km/h)80
Engine Cylinders2
Turning Radius (mm)6750
Product TypeL3N (Low Speed Goods Carrier)

Dimension

Overall Length (mm)5350
Ground Clearance (mm)210
Wheelbase (mm)3150
Loading Length {mm}2550
Loading Width {mm}1750
Loading Height {mm}324

Transmission & Loading Capacity

TransmissionManual
Payload (Kgs)1490 Kgs
GVW / GCW (Kgs)3490 kg
Kerb Weight (Kgs)2000
Gear Box5F+1R, Synchromesh
Power SteeringYes

Features

SteeringPower Steering
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Arm-restNo
Seat TypeStandard
Driver Information DisplayYes

Brakes & Suspension

BrakesDisc & Drum Brakes with twin pot calliper
Front SuspensionSemi elliptical type leaf spring - 6 leafs
Rear SuspensionSemi elliptical type leaf spring - 9 leafs

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionDeck Body
Cabin TypeDay Cabin
Tiltable CabinChassis With Cabin

Tyres

Number of Tyre4
Rear Tyre215/75 R16 LT
Front Tyre215/75 R16 LT

Others

ChassisYes
Fog LightsYes

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
