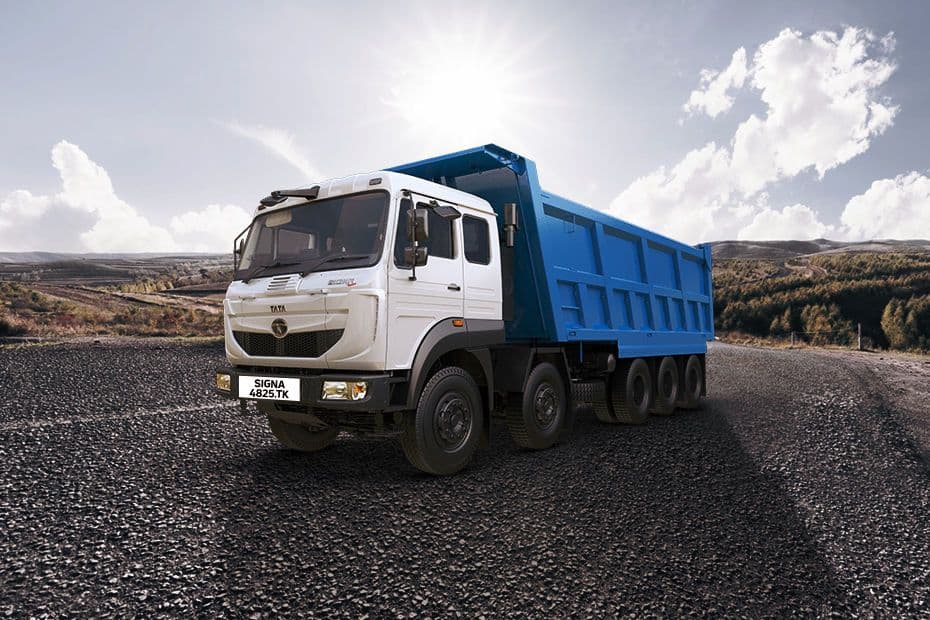

Tata Signa 4825.TK

Your questions, answered

• What is the payload of the Tata Signa 4825.TK?
  It carries a 38,000 kg payload, with a GVW of 47,500 kg and a kerb weight of 9,500 kg.

• Which engine does the Signa 4825.TK use?
  It uses the Cummins ISBe 6.7-litre (6692 cc) six-cylinder BS VI diesel producing 250 hp and 950 Nm.

• What mileage does the Signa 4825.TK give?
  The claimed mileage is about 3 kmpl, up to 3.5 kmpl on the highway. It has a 300-litre fuel tank.

• What body options are available?
  On the 6750 mm wheelbase it is offered with an 18 cum or a 29 cum box body.

• What axle configuration does it have?
  It is available in 10x2 and 10x4 configurations, with an air-suspended lift axle and a rear axle with differential lock.

• What are its dimensions?
  It is 9750 mm long, 2540 mm wide and 3067 mm tall, with 240 mm ground clearance.

• What is the top speed, gradeability and turning radius?
  Top speed is 80 km/h, gradeability is 23.4% and the turning radius is 11,900 mm.

• Does the Signa 4825.TK have a sleeper cabin?
  Yes. It is available with a day or sleeper cabin, both hydraulically tiltable, with AC and D+2 seating.

• Does it have ABS?
  No. ABS is not offered.

• What gearbox does it have?
  It has a 9-speed manual gearbox with a 430 mm single-plate dry clutch.

• What tyres does it use?
  It runs on 16 radial tyres of size 11R20 16PR.
