Specifications

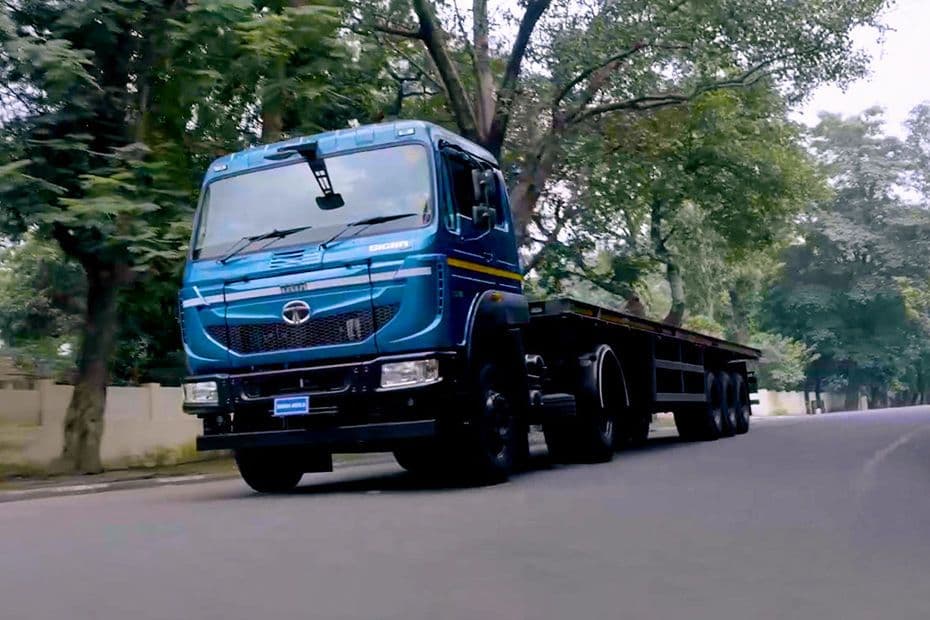

Tata Signa 4625.S ESC

Explore Tata Signa 4625.S ESC specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Signa 4625.S ESC

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineCummins ISBe 6.7L SCR
TransmissionManual
Power250 hp

Performance

Fuel Tank (Litres)365 Ltr
EngineCummins ISBe 6.7L SCR
Fuel TypeDiesel
Emission NormsBS-VI
Max Torque950 Nm
Mileage4 kmpl
Max Speed (km/h)80
Engine Cylinders6

Dimension

Overall Length (mm)12000
Overall Width (mm)2500
Overall Height (mm)2900
Ground Clearance (mm)240
Wheelbase (mm)3320
Axle Configuration4x2

Transmission & Loading Capacity

TransmissionManual
Payload (Kgs)32000 Kgs
GVW / GCW (Kgs)45500 kg
Kerb Weight (Kgs)13500
Gear Box9 Forward + 1 Reverse
Power SteeringYes
Clutch430 mm Single Plate Dry Friction with Organic Lining

Features

SteeringPower Steering
A/COptional
Cruise ControlNo
Navigation SystemNo
TelematicsYes
Tiltable SteeringTilt and telescopic
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesNew iCGT Brakes
Front SuspensionParabolic multi leaf spring
Rear SuspensionSemi-elliptical multi leaf spring
ABSYes
Parking BrakesYes
Front AxleHeavy Duty 7T Reverse Elliot Type
Rear AxleSingle reduction RA 110LD

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionCustomizable body
Cabin TypeDay and Slepper Cabin
Tiltable CabinYes

Tyres

Number of Tyre18
Rear Tyre295/90R20
Front Tyre295/90R20

Others

ChassisYes
Battery(Volts)12 V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
