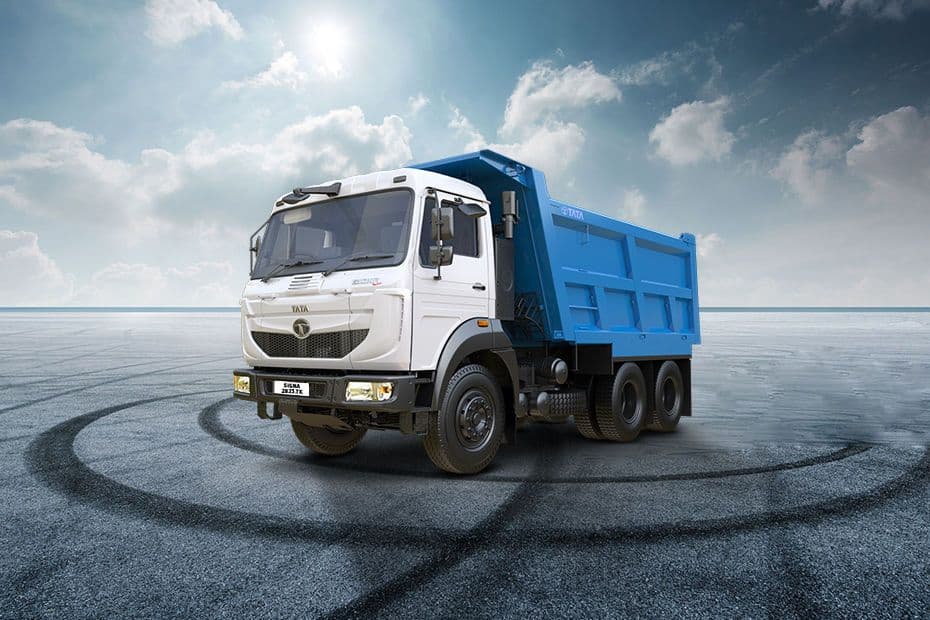

Tata Signa 2823.K/.TK 6S STD

Your questions, answered

• What is the GVW of the Tata Signa 2823.K?
  It has a gross vehicle weight of 28,000 kg.

• Which engine does the Signa 2823.K use?
  It uses the Cummins ISBe 5.6-litre (5600 cc) six-cylinder BS6 diesel producing 219 hp and 850 Nm.

• What mileage does the Signa 2823.K give?
  The claimed mileage is 4.5-5.5 kmpl, dropping to about 3.5-4.5 kmpl in city use. It has a 300-litre fuel tank.

• What body options are available?
  It is offered with 14 or 16 cum box bodies on a 3880 mm wheelbase and a 20 cum box body on a 4880 mm wheelbase.

• What gearbox does it have?
  It has a 6-speed manual gearbox (6 forward, 1 reverse) with a 380 mm single-plate dry clutch.

• What is the axle configuration?
  It is a 6x4 tipper with a forged I-beam front axle and a single-reduction heavy-duty rear axle with a differential lock.

• What is the gradeability and ground clearance?
  Gradeability is 39% and ground clearance is 249 mm.

• Does the Signa 2823.K have AC?
  Yes. The tiltable day cabin comes with AC, tilt-and-telescopic power steering, an adjustable driver seat and telematics.

• Does it have ABS?
  No. It uses air brakes with a parking brake.

• What tyres does it use?
  It runs on 10 tyres, 295/95 D20 at the front and 295/95 R20 at the rear.
