Specifications

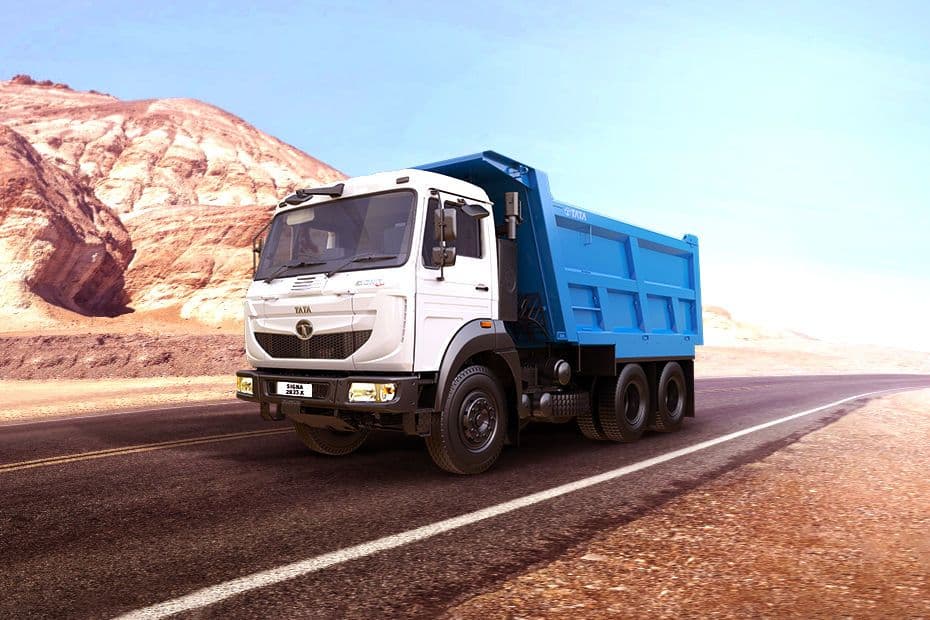

Tata Signa 2823.K HD 9S

Explore Tata Signa 2823.K HD 9S specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Signa 2823.K HD 9S

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineCummins isbe 5 6l
TransmissionManual
Power220 Hp

Performance

Fuel Tank (Litres)300 Ltr
EngineCummins isbe 5 6l
Fuel TypeDiesel
Emission NormsBS VI
Max Torque850 Nm
Mileage2.75-3.75 kmpl
Max Speed (km/h)60
Engine Cylinders6

Dimension

Overall Length (mm)7101
Overall Width (mm)2592
Overall Height (mm)3205
Ground Clearance (mm)250
Wheelbase (mm)3880
Axle Configuration6x4
Size (Cu. M)16 Box

Transmission & Loading Capacity

TransmissionManual
Payload (Kgs)16000 Kgs
GVW / GCW (Kgs)28000 kg
Gear Box9 Forward + 1 Reverse
Power SteeringYes
Clutch380 mm Dia Push type Single Plate Dry Friction Organic Lining

Features

SteeringPower Steering
A/CBlower
Cruise ControlNo
Navigation SystemNo
TelematicsYes
Tiltable SteeringTilt and telescopic
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesNew iCGT Brakes
Front SuspensionSemi elliptical leaf spring suspension
Rear SuspensionTML bogie suspension
ABSNo
Parking BrakesYes
Front AxleForged I Beam Reverse Elliot Type Drop Beam
Rear AxleSingle Reduction,Extra Heavy Duty,Hypoid Gears,Fully Floating Axle Shafts With Differential Lock

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionCustomizable body
Cabin TypeDay Cabin
Tiltable CabinHydraulically tiltable

Tyres

Number of Tyre10
Rear Tyre295 95 D20
Front Tyre295 95 D20

Others

ChassisYes
Battery(Volts)12 V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
