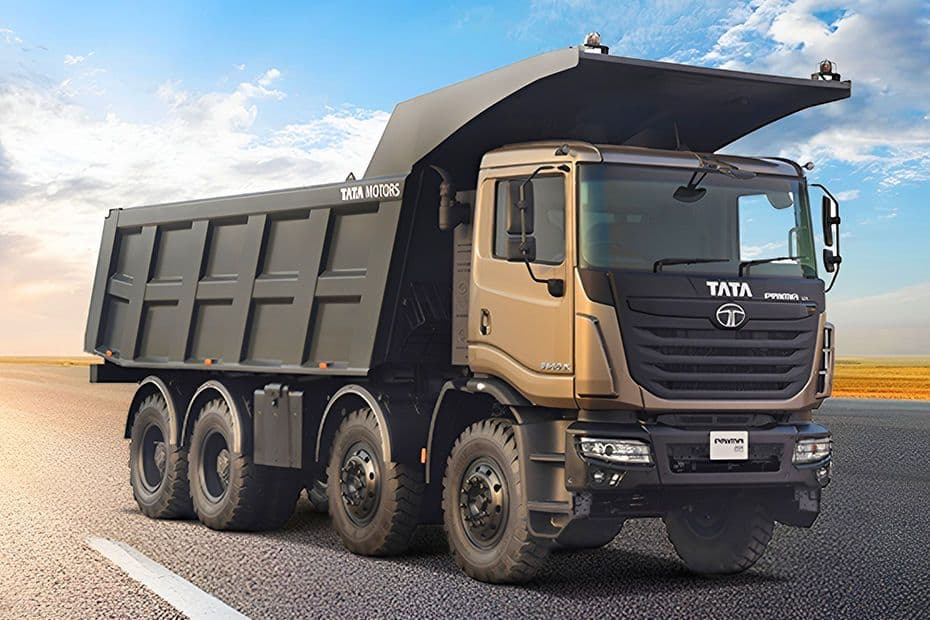

Tata Prima 3540.K AutoShift

Your questions, answered

• What engine does the Tata Prima 3540.K AutoShift use?
  It uses an 8.5-litre Cummins BS-VI Phase II diesel producing 375 hp and 1800 Nm.

• What is the GVW of the Prima 3540.K?
  It has a gross vehicle weight of 35,000 kg.

• What gearbox does it have?
  It has the Tata G1800 12-speed AutoShift automated manual transmission.

• What is the gradeability of the Prima 3540.K AutoShift?
  It is rated for 83% gradeability, suited to very steep mine haul roads.

• What body options are available?
  On the 5250 mm and 6200 mm wheelbases you can choose a 20.5 cum scoop body or a 25 or 30 cum box body.

• What is the fuel tank capacity?
  It has a 300-litre fuel tank.

• Does it have ABS?
  Yes. It uses S-cam pneumatic brakes with ABS.

• What suspension does it use?
  The front uses parabolic leaf springs with an equaliser and anti-roll bar, and the rear uses a 48-ton inverted leaf bogie suspension.

• What tyres does it run on?
  It runs on 12 mining tyres of size 12x24 20PR.

• What cabin features does it offer?
  The tiltable Prima day cabin has integral hydraulic power steering with tilt and telescopic adjustment, an adjustable driver seat and a driver information display.
