Specifications

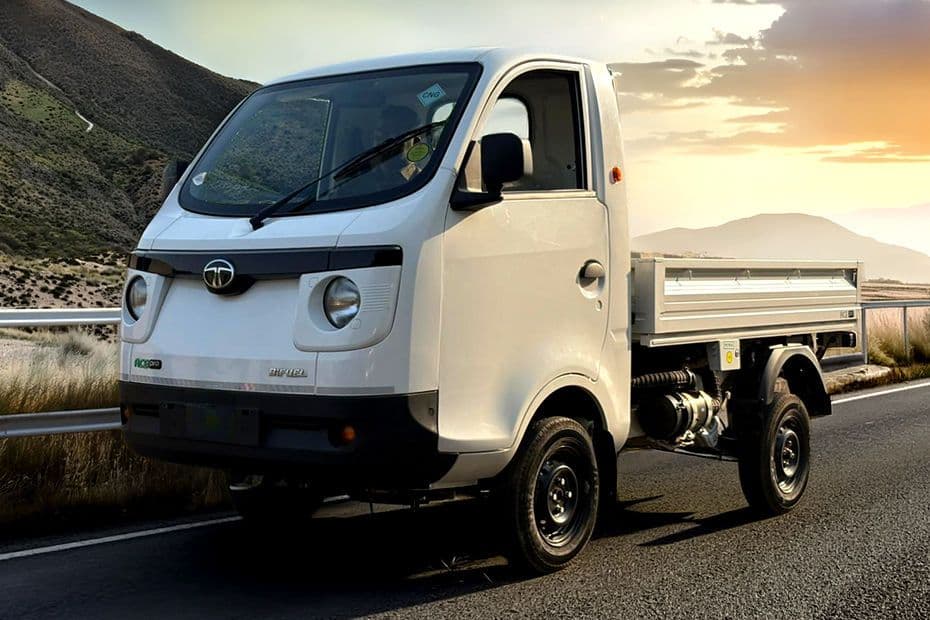

Tata Ace Pro Bi-Fuel

Explore Tata Ace Pro Bi-Fuel specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Ace Pro Bi-Fuel

Specifications & Features.

Key Specifications

Fuel TypeCNG
EngineBI-FUEL RDE BS-VI, 4 stroke Water Cooled
TransmissionManual
Power19 kW

Performance

Fuel Tank (Litres)CNG 45 Liters (Petrol-5 Liters) Ltr
EngineBI-FUEL RDE BS-VI, 4 stroke Water Cooled
Fuel TypeCNG
Emission NormsBS-VI
Max Torque51 Nm
Mileage21 kmpl
Max Speed (km/h)55
Engine Cylinders2

Dimension

Overall Length (mm)3560
Overall Width (mm)1497
Overall Height (mm)1820
Ground Clearance (mm)170
Wheelbase (mm)1800
Loading Length {mm}2046
Loading Width {mm}1485
Loading Height {mm}326

Transmission & Loading Capacity

TransmissionManual
Payload (Kgs)750 Kgs
GVW / GCW (Kgs)1535 kg
Kerb Weight (Kgs)785
Gear BoxTA-59 with drive shafts
Power SteeringYes
ClutchSingle Plate Dry Friction Diaphragm Type

Features

SteeringMechanical steering (Rack & Pinion)
Cruise ControlNo
Navigation SystemNo
Arm-restNo
Seat TypeStandard
Driver Information DisplayYes
Adjustable Driver SeatNo
Seating CapacityD+1

Brakes & Suspension

BrakesDisc & Drum Brakes
Front SuspensionIndependent, McPherson strut
Rear SuspensionSemi trailing arm with coil spring & hydraulic damper

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionDeck Body
Cabin TypeDay Cabin
Tiltable CabinYes

Tyres

Number of Tyre4
Rear Tyre145R12
Front Tyre145R12

Others

ChassisYes
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
