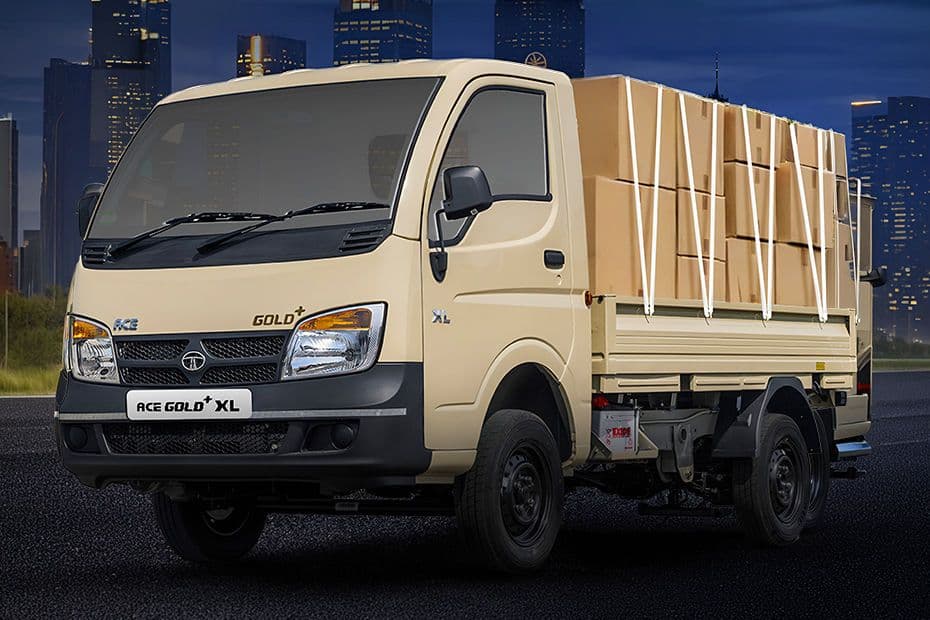

Tata Ace Gold Plus XL

Explore Tata Ace Gold Plus XL specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Ace Gold Plus XL

Specifications & Features.

Key Specifications

Fuel TypeDiesel
Engine2 Cyl. , 700CC TC
TransmissionManual
Power16.2 kW

Performance

Engine2 Cyl. , 700CC TC
Fuel TypeDiesel
Emission NormsBS-VI
Max Torque55 Nm
Max Speed (km/h)62
Engine Cylinders2
Turning Radius (mm)4625
Product TypeL5N (High Speed Goods Carrier)

Dimension

Overall Length (mm)4075
Overall Width (mm)1500
Overall Height (mm)1858
Ground Clearance (mm)174
Wheelbase (mm)2250
Loading Length {mm}2520
Loading Width {mm}1490
Loading Height {mm}300

Transmission & Loading Capacity

TransmissionManual
Payload (Kgs)1000 Kgs
GVW / GCW (Kgs)1975 kg
Gear Box5 Forward + 1 Reverse

Features

SteeringMechanical
Cruise ControlNo
Navigation SystemNo
Arm-restNo
Seat TypeStandard
Driver Information DisplayYes
Adjustable Driver SeatNo
Seating CapacityD+1

Brakes & Suspension

BrakesDisc & Drum Brakes
Front SuspensionParabolic Leaf Spring
Rear SuspensionSemi - Elliptical leaf spring

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionDeck Body
Cabin TypeDay Cabin

Tyres

Number of Tyre4
Rear Tyre155 R13 LT 8PR
Front Tyre155 R13 LT 8PR

Others

ChassisYes
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
