Specifications

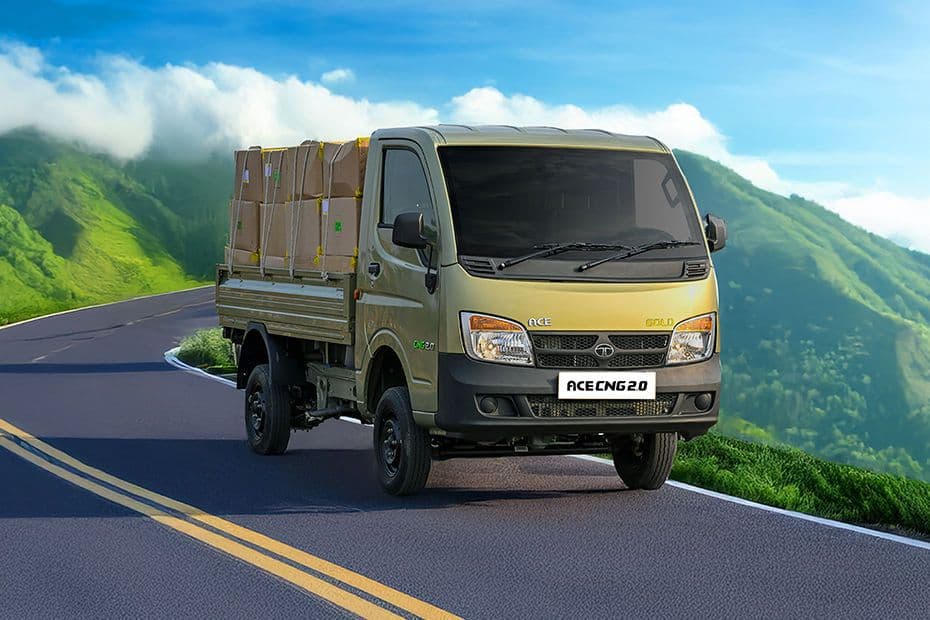

Tata ACE CNG 2.0(Bi-Fuel)

Explore Tata ACE CNG 2.0(Bi-Fuel) specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

ACE CNG 2.0(Bi-Fuel)

Specifications & Features.

Key Specifications

Fuel TypeCNG
Engine4 stroke, Water Cooled, Multipoint Gas Injection, Dedicated CNG Engine
TransmissionManual
Power18.3 kW

Performance

Fuel Tank (Litres)70 Ltr
Engine4 stroke, Water Cooled, Multipoint Gas Injection, Dedicated CNG Engine
Fuel TypeCNG
Max Torque50 Nm
Mileage21-24 kmpl
Max Speed (km/h)70
Max Power18.3 kW
Engine Displacement (cc)694 cc

Dimension

Overall Length (mm)4075
Overall Width (mm)1500
Overall Height (mm)1840
Ground Clearance (mm)160
Wheelbase (mm)2250

Transmission & Loading Capacity

TransmissionManual
Payload (Kgs)800 Kgs
GVW / GCW (Kgs)1790 kg
Kerb Weight (Kgs)990
Gear BoxGBS 65- 5/6.31
Power SteeringNo
ClutchSingle Plate Dry Friction Diaphragm Type

Features

SteeringManual. 27.9-30.4(variable ratio)
Tiltable SteeringNo
Seat TypeStandard
Driver Information DisplayYes
Seating CapacityD+1
Tubeless TyresYes
Seat BeltsYes

Brakes & Suspension

BrakesDisc & Drum Brakes
Front SuspensionRigid Axle with Parabolic Leaf Spring
Rear SuspensionLive Axle with Semi-Elliptical leaf spring
Parking BrakesYes

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionDeck Body
Cabin TypeDay Cabin
Tiltable CabinYes

Tyres

Number of Tyre4
Rear Tyre145 R12 LT 8PR Radial
Front Tyre145 R12 LT 8PR Radial

Others

ChassisYes
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
