Specifications

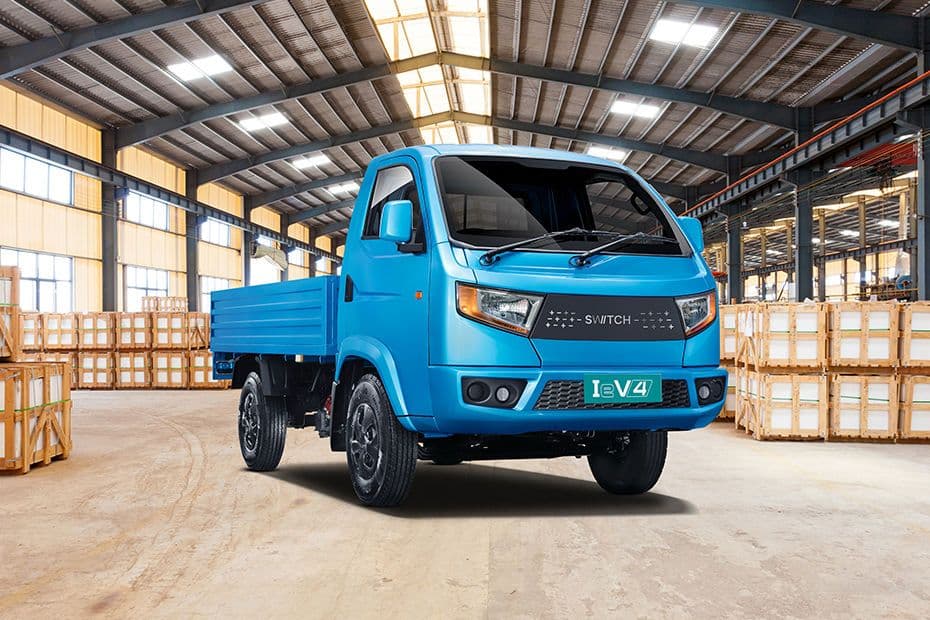

Switch IeV4

Explore Switch IeV4 specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

IeV4

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power60 kW

Performance

Fuel TypeElectric
Emission NormsZero Tailpipe
Max Torque230 Nm
Max Speed (km/h)80
Battery Capacity32.2 kWh
Product TypeL3N (Low Speed Goods Carrier)
Carrier TypeGoods Carrier
Max Power60 kW

Dimension

Ground Clearance (mm)206
Wheelbase (mm)2590
Axle Configuration4x2
Loading Length {mm}2951
Loading Width {mm}1750
Loading Height {mm}488

Transmission & Loading Capacity

TransmissionAutomatic
Payload (Kgs)1750 Kgs
GVW / GCW (Kgs)3490 kg
Kerb Weight (Kgs)1790
Gear BoxSingle speed gearbox
Power SteeringYes

Features

SteeringElectric Power Steering
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsYes
Arm-restNo
Seat TypeStandard
Driver Information DisplayYes

Brakes & Suspension

BrakesDisc & Drum Brakes
Front SuspensionParabolic leaf
Rear SuspensionSemi Elliptical Leaf
ABSYes
Parking BrakesYes

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionDeck Body
Cabin TypeDay Cabin
Tiltable CabinYes

Tyres

Number of Tyre4
Rear Tyre7.00 R15 LT 12 PR Radial
Front Tyre7.00 R15 LT 12 PR Radial

Others

ChassisYes
Battery(Volts)300 V
Fog LightsYes

Charging

Charging Time4-5 hrs

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
