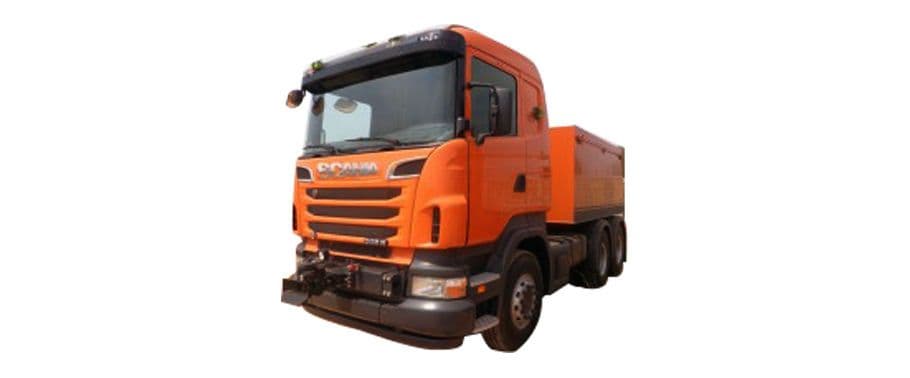

Scania R580 V8 Puller Specifications, Performance & Features.

Specifications & Features.

Key Specifications

Fuel TypeDiesel

EngineScania DC 16 V8, 4 valves per cylinder, PDE (Pumpe-Düse-Einspritzung) injection system/ Unit Injector, Turbocharger, charge air cooler & EMS engine control unit and In-built Hydraulic Retarder

TransmissionSemi Automatic

Power580

Performance

Fuel Tank (Litres)500 Ltr

EngineScania DC 16 V8, 4 valves per cylinder, PDE (Pumpe-Düse-Einspritzung) injection system/ Unit Injector, Turbocharger, charge air cooler & EMS engine control unit and In-built Hydraulic Retarder

Fuel TypeDiesel

Emission NormsE-V

Max Torque2700Nm

Mileage4-6 kmpl

Max Speed (km/h)75

Engine Cylinders8

Dimension

Overall Length (mm)7010

Overall Width (mm)2550

Overall Height (mm)3458

Ground Clearance (mm)280

Wheelbase (mm)4023

Axle Configuration6x4

Transmission & Loading Capacity

TransmissionSemi Automatic

Payload (Kgs)190000 Kgs

GVW / GCW (Kgs)200000 kg

Kerb Weight (Kgs)10000

Gear Box12-Speed

Power SteeringYes

Clutch430 mm dia., Single Plate dry type, with clutch wear Protection and clutch overload warning

Features

SteeringPower Steering

A/CYes

Cruise ControlYes

Navigation SystemNo

TelematicsNo

Tiltable SteeringYes

Arm-restYes

Seat TypeReclining

Brakes & Suspension

BrakesAir Brakes

Front SuspensionParabolic Leaf springs Suspension

Rear SuspensionParabolic Leaf springs suspension

ABSYes

Parking BrakesYes

Front AxleForged "I" beam reverse Elliot type Axle

Rear AxleFirst rear Axle: Hub reduction Hypoid gears Axle,Second rear Axle: Tandem Bogie Axle

Body Option & Cabin Type

Chassis TypeChassis with Cabin

Body OptionTrailer Body

Cabin TypeSleeper Cabin

Tiltable CabinYes

Tyres

Number of Tyre10

Rear Tyre12.00 R 20

Front Tyre12.00 R 20

Others

ChassisNo

Battery(Volts)12 V

Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
