Specifications

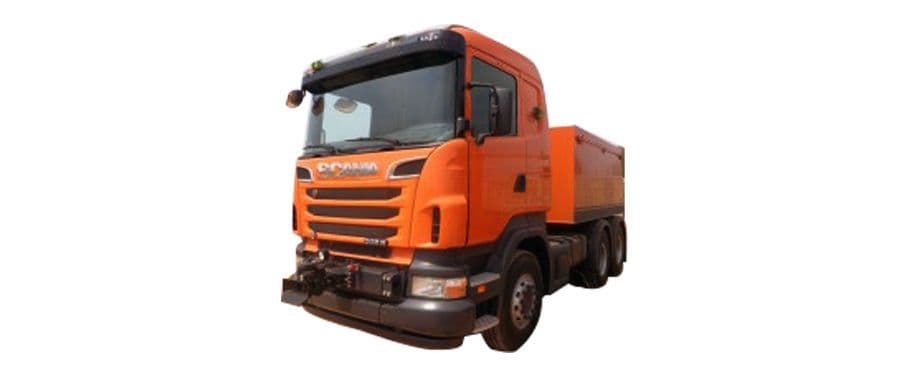

Scania R500 V8 Puller

Explore Scania R500 V8 Puller specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

R500 V8 Puller

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineScania DC 16 V8, Turbocharged, SCR and with in-built Retarder
TransmissionSemi Automatic
Power500

Performance

Fuel Tank (Litres)500 Ltr
EngineScania DC 16 V8, Turbocharged, SCR and with in-built Retarder
Fuel TypeDiesel
Emission NormsE-V
Max Torque2400 Nm
Mileage6-8 kmpl
Max Speed (km/h)70
Engine Cylinders8

Dimension

Overall Length (mm)7421
Overall Width (mm)2550
Overall Height (mm)3459
Ground Clearance (mm)280
Wheelbase (mm)4023
Axle Configuration6x4

Transmission & Loading Capacity

TransmissionSemi Automatic
Payload (Kgs)139529 Kgs
GVW / GCW (Kgs)150000 kg
Kerb Weight (Kgs)10471
Gear Box14-Speed
Power SteeringYes
Clutch430 mm dia., Single Plate dry type

Features

SteeringPower Steering
A/CYes
Cruise ControlYes
Navigation SystemNo
TelematicsNo
Tiltable SteeringYes
Arm-restYes
Seat TypeStandard

Brakes & Suspension

BrakesAir Brakes
Front SuspensionParabolic Leaf springs Suspension
Rear SuspensionParabolic Leaf springs suspension
ABSYes
Parking BrakesYes
Front AxleForged "I" beam reverse Elliot type Axle
Rear AxleFirst rear Axle: Single reduction Hypoid gears Axle,Second rear Axle: Tandem Axle

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionTrailer Body
Cabin TypeSleeper Cabin
Tiltable CabinYes

Tyres

Number of Tyre10
Rear Tyre12.00 R 20
Front Tyre12.00 R 20

Others

ChassisNo
Battery(Volts)24 V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
