Specifications

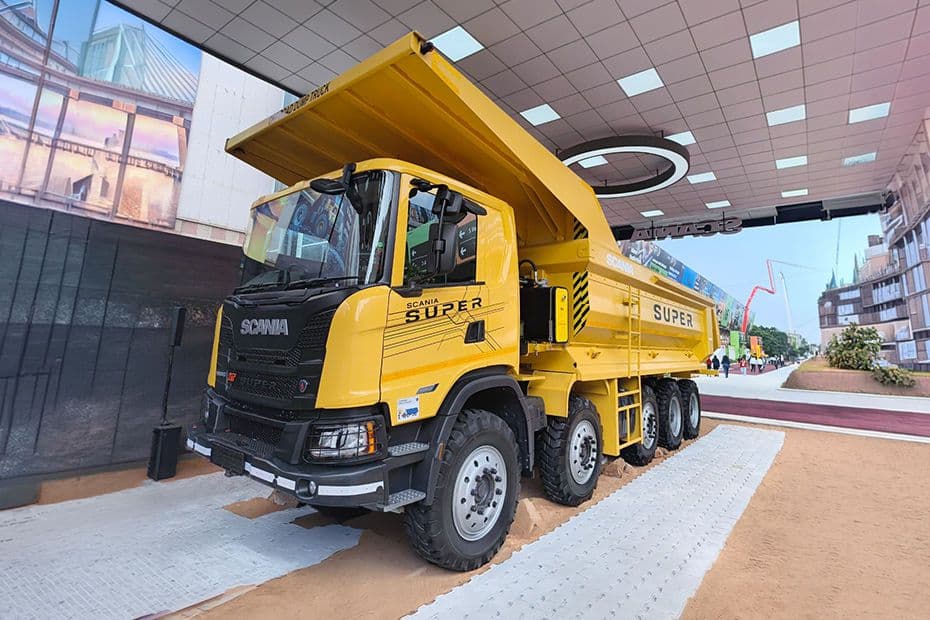

Scania G560 SUPER 10X4 Tipper

Explore Scania G560 SUPER 10X4 Tipper specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

G560 SUPER 10X4 Tipper

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineInline 6 cylinder super 13-Litre engine
TransmissionManual
Power560 hp

Performance

Fuel Tank (Litres)310 Ltr
EngineInline 6 cylinder super 13-Litre engine
Fuel TypeDiesel
Emission NormsZERO Emission
Max Torque2800 Nm
Engine Cylinders6
Battery Capacity180 Ah
Product TypeL5N (High Speed Goods Carrier)

Dimension

Overall Length (mm)10510
Overall Width (mm)3110
Overall Height (mm)3755
Wheelbase (mm)6475
Axle Configuration10x4
Size (Cu. M)27.5

Transmission & Loading Capacity

TransmissionManual
GVW / GCW (Kgs)71000 kg
Gear Box14 forward + 4 reverse
Power SteeringYes
Clutch430 mm dia, Single dry plate clutch

Features

SteeringPower Steering
A/CYes
Cruise ControlYes
Tiltable SteeringTilt & Telescopic
Seat TypeStandard
Driver Information DisplayYes
Adjustable Driver SeatYes
Seating CapacityD+1

Brakes & Suspension

BrakesExhaust brake
Front SuspensionParabolic leaf spring suspension with 5 leaves,
Rear SuspensionParabolic leaf spring suspension with 8 leaves
Parking BrakesYes
Front AxleTwin Steerable axle
Rear AxleHeavy duty axles

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionRock body
Cabin TypeDay Cabin
Tiltable CabinYes

Tyres

Number of Tyre16
Rear Tyre12-24 Cross ply with 20 PR rating, 8.5 x 24-inch rims
Front Tyre12-24 Cross ply with 20 PR rating, 8.5 x 24-inch rims

Others

ChassisYes
Battery(Volts)24 V
Alternator (Amps)100 A
Fog LightsYes

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
