Specifications

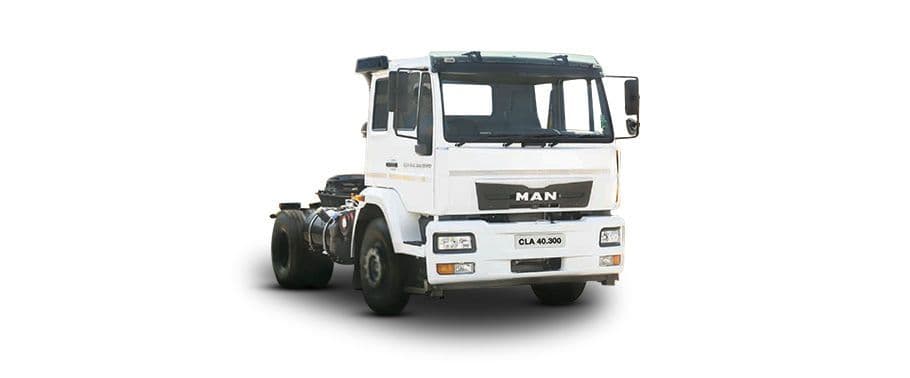

Man CLA 40.300 EVO 4X2

Explore Man CLA 40.300 EVO 4X2 specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

CLA 40.300 EVO 4X2

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineDi, Turbo Charged Intercooled
TransmissionManual
Power300

Performance

Fuel Tank (Litres)300 Ltr
EngineDi, Turbo Charged Intercooled
Fuel TypeDiesel
Emission NormsBS-IV
Max Torque1150 Nm
Mileage6-7 kmpl
Max Speed (km/h)80
Engine Cylinders6

Dimension

Overall Length (mm)5860
Overall Height (mm)2778
Ground Clearance (mm)292
Wheelbase (mm)3600
Axle Configuration4x2

Transmission & Loading Capacity

TransmissionManual
Payload (Kgs)33840 Kgs
GVW / GCW (Kgs)40200 kg
Kerb Weight (Kgs)6360
Gear Box9 Forward + 1 Reverse
Power SteeringYes
ClutchSingle plate, Power Assisted

Features

SteeringPower Steering
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesAir Brakes
Front SuspensionPrabolic Leaf springs with Double Acting Shock absorbers
Rear SuspensionTwo stage Semi Elliptical Leaf Springs
ABSYes
Parking BrakesNo
Front AxleHeavy Duty Straight Forged I-Beam type, Maintence free Hub Bearings
Rear AxleMan planetary Tandem Bogie With Hub Reduction Interaxle & stabliser bar

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionCustomizable body
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre6
Rear Tyre11.00 X 20
Front Tyre11.00 X 20

Others

ChassisYes
Battery(Volts)12 V
Fog LightsYes
Axle TypesNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
