Specifications

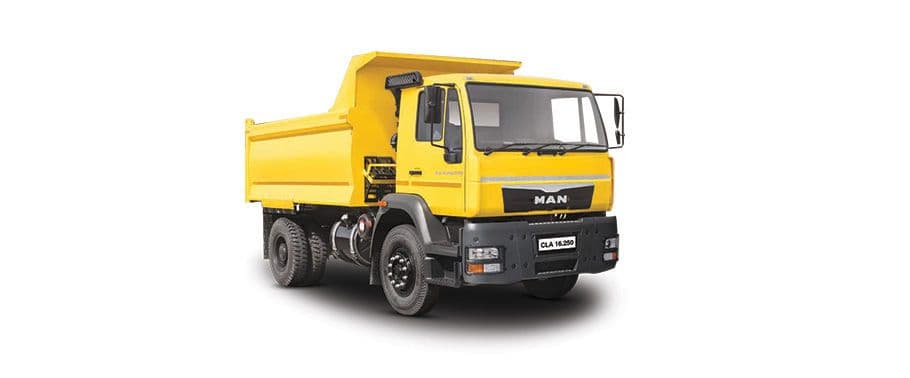

Man CLA 16.250 EVO 4X2

Explore Man CLA 16.250 EVO 4X2 specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

CLA 16.250 EVO 4X2

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineDi, Turbo Charged Intercooled
TransmissionManual
Power255

Performance

Fuel Tank (Litres)200 Ltr
EngineDi, Turbo Charged Intercooled
Fuel TypeDiesel
Emission NormsBS-IV
Max Torque950 Nm
Mileage7-9 kmpl
Max Speed (km/h)60
Engine Cylinders6

Dimension

Overall Length (mm)6012
Ground Clearance (mm)292
Wheelbase (mm)3600
Axle Configuration4x2

Transmission & Loading Capacity

TransmissionManual
Payload (Kgs)7865 Kgs
GVW / GCW (Kgs)16200 kg
Kerb Weight (Kgs)8335
Gear Box6 Forward + 1 Reverse
Power SteeringYes
ClutchSingle plate, Power Assisted

Features

SteeringPower Steering
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesAir Brakes
Front SuspensionSemi Eiliptical Leaf springs with Double Acting Shock absorbers
Rear SuspensionHeavy duty Boige Type Suspension
ABSYes
Parking BrakesNo
Front AxleHeavy Duty Straight Forged I-Beam type, Maintence free Hub Bearings
Rear AxleMan planetary Tandem Bogie With Hub Reduction Interaxle & stabliser bar

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionRock/Scoop Body
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre6
Rear Tyre11.00 X 20
Front Tyre11.00 X 20

Others

ChassisYes
Battery(Volts)12 V
Fog LightsYes

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
