Specifications

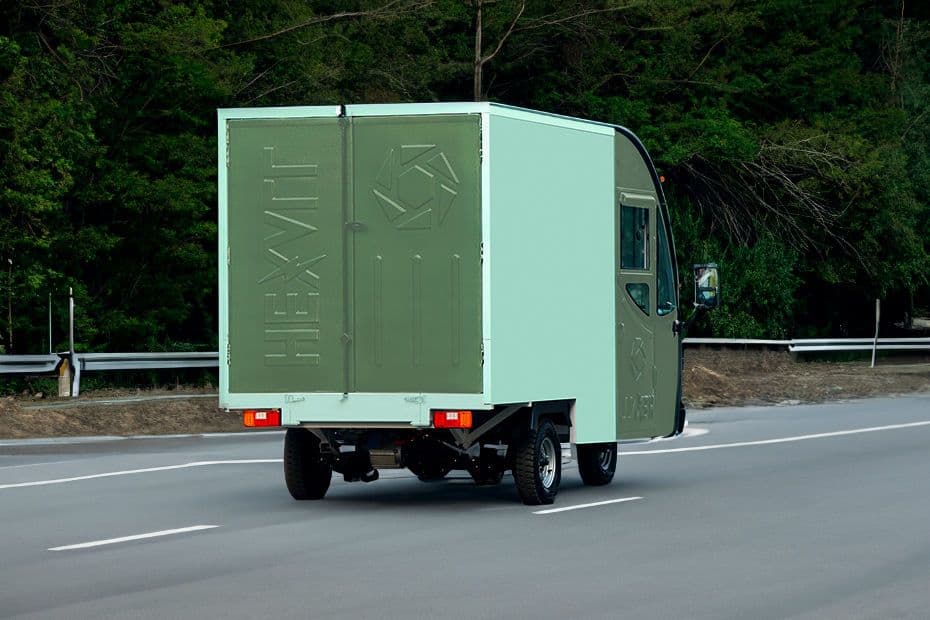

Hexall Mammoth S

Explore Hexall Mammoth S specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Mammoth S

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
PowerNo

Performance

Fuel TypeElectric
Emission NormsZero Tailpipe
Max Speed (km/h)60
Battery Capacity7.37 kWh
Product TypeL5N (High Speed Goods Carrier)
Carrier TypeGoods Carrier
Range150
Type of MotorElectric Motor

Dimension

Overall Length (mm)3000
Overall Width (mm)1590
Overall Height (mm)1800
Ground Clearance (mm)138
Wheelbase (mm)1950
Axle Configuration4x2
Size (Cu. M)138

Transmission & Loading Capacity

TransmissionAutomatic
Payload (Kgs)550 Kgs
GVW / GCW (Kgs)1500 kg
Power SteeringNo

Features

SteeringSteering Control
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brakes
Front SuspensionLeaf spring suspension
Rear SuspensionLeaf Spring Suspension
ABSYes
Parking BrakesYes

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionBox body
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre4

Others

ChassisYes
Battery(Volts)48 V
Fog LightsNo

Charging

Charging Time6-8 hrs

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
