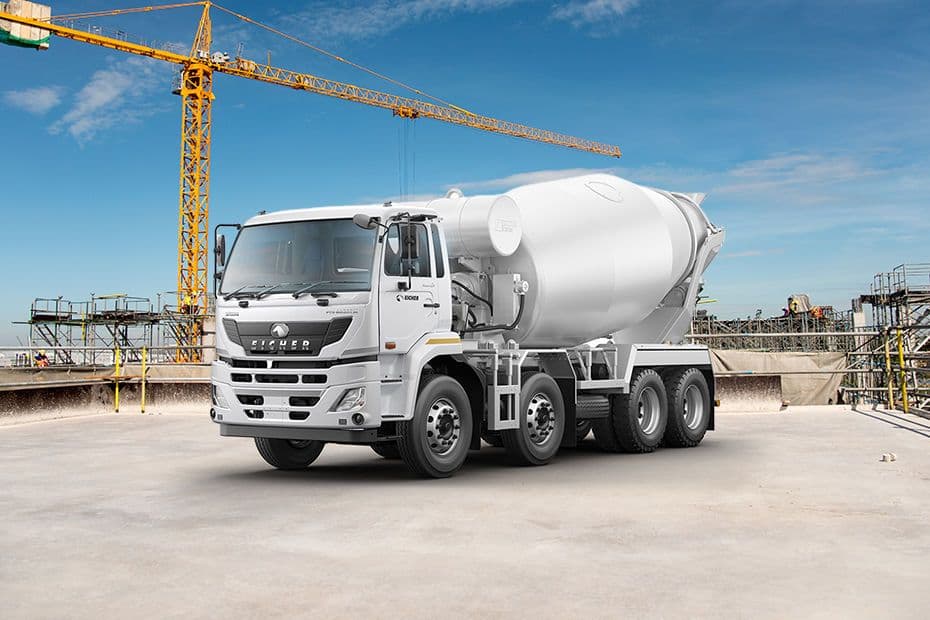

Eicher Pro 6035TM

Your questions, answered

• What drum sizes are available on the Eicher Pro 6035TM?
  It is offered with 9, 10 and 11 cubic metre transit mixer drums.

• What is the GVW and payload?
  It has a 35,000 kg GVW, a 16,000 kg payload and a 10,000 kg kerb weight.

• Which engine does the Pro 6035TM use?
  It uses the 7698 cc six-cylinder VEDX8 OBD-II BS-VI diesel producing 194 kW and 1000 Nm.

• What mileage does the Pro 6035TM give?
  The claimed mileage is 2.5-3.5 kmpl, up to 3-4.5 kmpl on the highway. It has a 220-litre fuel tank.

• What gearbox does it have?
  It uses the ET120S9 9-speed manual gearbox with a 430 mm pull-type clutch.

• What are its dimensions?
  It is 8815 mm long, 2570 mm wide and 2960 mm tall, with a 5285 mm wheelbase and 252 mm ground clearance.

• What is the top speed and gradeability?
  Top speed is 80 km/h and gradeability is 39%.

• Does it have ABS?
  Yes. It uses S-cam dual-line brakes with ABS.

• Does the cabin have AC?
  HVAC is optional. Cruise control, telematics and a 6-way adjustable seat are standard.

• What tyres does it use?
  It runs on 12 nylon tyres of size 11x20, and tubeless tyres are optional.
