Specifications

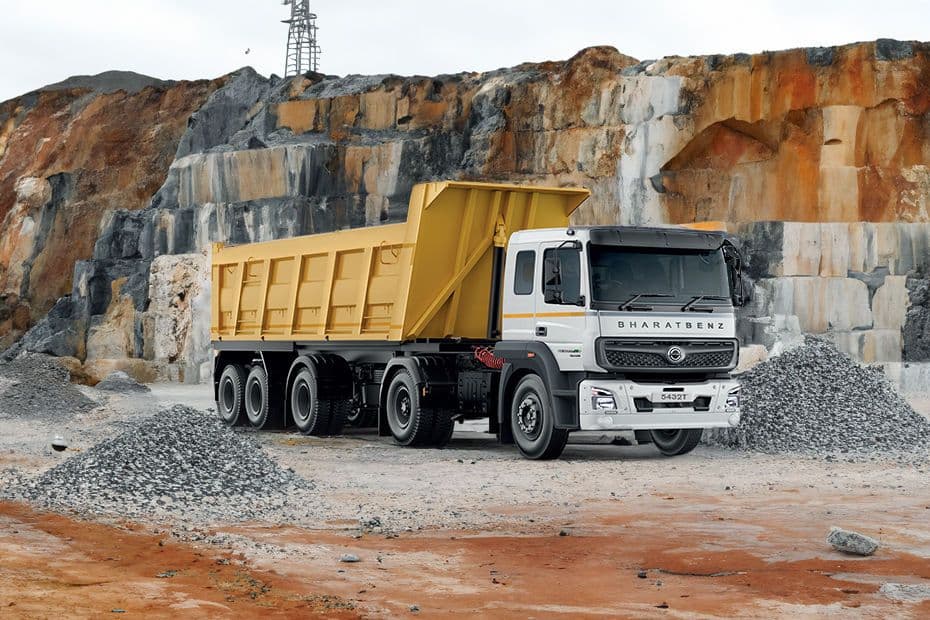

BharatBenz 5432T

Explore BharatBenz 5432T specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

5432T

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineOM 926
TransmissionManual
Power236 kW

Performance

Fuel Tank (Litres)455/430 Ltr
EngineOM 926
Fuel TypeDiesel
Emission NormsBS-VI - OBD-2
Max Torque1250 Nm
Mileage3-4 kmpl
Max Speed (km/h)80
Engine Cylinders6

Dimension

Overall Length (mm)6065
Overall Width (mm)2490
Overall Height (mm)2975
Ground Clearance (mm)304
Wheelbase (mm)3600
Axle Configuration4x2

Transmission & Loading Capacity

TransmissionManual
Payload (Kgs)39500 Kgs
GVW / GCW (Kgs)54000 kg
Gear BoxG 131, 9F+1R, Mechanical, Synchromesh Gears
Power SteeringYes
Clutch430, 4.5 mm dia, Single Dry Plate, Hydraulic Control

Features

SteeringHydraulic Power assisted
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringYes
Arm-restNo
Seat TypeStandard
Driver Information DisplayYes

Brakes & Suspension

BrakesPneumatic, Foot Operated, Dual Line Drum Brakes
Front SuspensionParabolic type leaf spring with 2 hydraulic shock absorbers
Rear SuspensionSemi-Elliptical With Auxiliary Springs
ABSYes
Parking BrakesPneumatically operated hand control valve
Front AxleIF 7.0
Rear AxleMT36 610 (Hub Reduction)

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionCustomizable body
Cabin TypeSleeper Cabin
Tiltable CabinYes

Tyres

Number of Tyre18
Rear Tyre295/90R20-Radial, 295/80R22.5-Tubless
Front Tyre295/90R20-Radial, 295/80R22.5-Tubless

Others

ChassisYes
Battery(Volts)24 V
Fog LightsYes

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
