Specifications

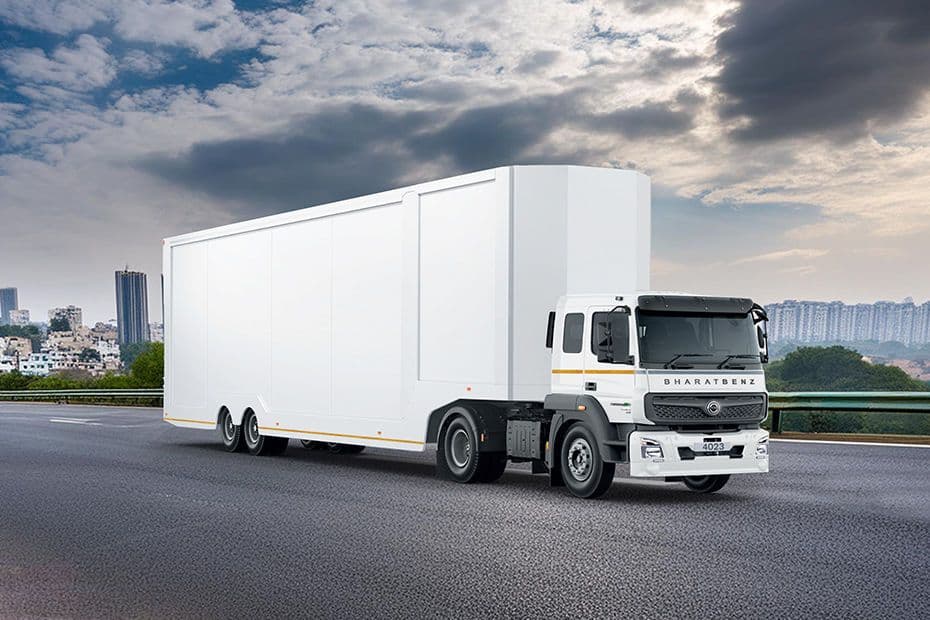

BharatBenz 4023T

Explore BharatBenz 4023T specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

4023T

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineOM 926
TransmissionManual
Power180 kW

Performance

Fuel Tank (Litres)455/430 Ltr
EngineOM 926
Fuel TypeDiesel
Emission NormsBS VI - OBD-2
Max Torque850 Nm
Mileage3.5-4.5 kmpl
Max Speed (km/h)80
Engine Cylinders6

Dimension

Overall Length (mm)5780
Overall Width (mm)2490
Overall Height (mm)2960
Ground Clearance (mm)237
Wheelbase (mm)3300
Axle Configuration4x2

Transmission & Loading Capacity

TransmissionManual
Payload (Kgs)33650 Kgs
GVW / GCW (Kgs)39500 kg
Kerb Weight (Kgs)5850
Gear BoxG 131, 9F+1R,Mechanical, Synchromesh Gears
Power SteeringYes
Clutch395, 3.9 mm dia, Single Dry Plate, Hydraulic Control

Features

SteeringHydraulic Power assisted
A/CYes
Cruise ControlYes
Navigation SystemNo
TelematicsYes
Tiltable SteeringYes
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesPneumatic, Foot Operated, Dual Line Drum Brakes
Front SuspensionParabolic type leaf spring with 2 hydraulic shock absorbers
Rear SuspensionSemi-Elliptical With Auxiliary Springs
ABSYes
Parking BrakesPneumatically operated hand control valve
Front AxleIF 7.0
Rear AxleIR440-11

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionCustomizable body
Cabin TypeSleeper Cabin
Tiltable CabinYes

Tyres

Number of Tyre14
Rear Tyre295/90R20-Radial, 295/80R22.5-Tubless
Front Tyre295/90R20-Radial, 295/80R22.5-Tubless

Others

ChassisYes
Battery(Volts)24 V
Fog LightsYes

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
