Specifications

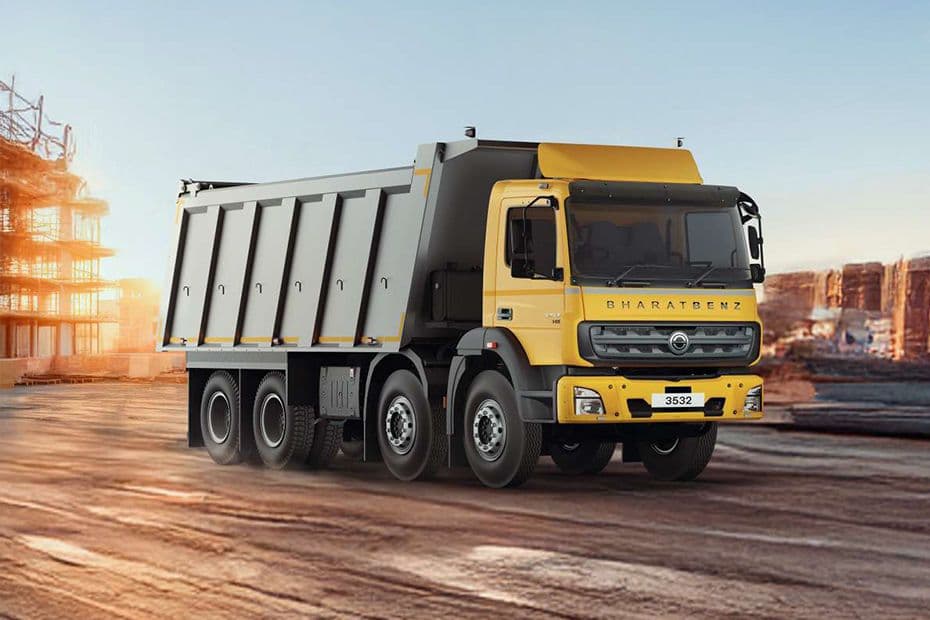

BharatBenz 3532C HX

Explore BharatBenz 3532C HX specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

3532C HX

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineOM 926
TransmissionManual
Power316 hp

Performance

Fuel Tank (Litres)260 Ltr
EngineOM 926
Fuel TypeDiesel
Emission NormsBSVI OBD-II
Max Torque1250 Nm
Max Speed (km/h)60
Engine Cylinders6
Turning Radius (mm)19500

Dimension

Overall Length (mm)9015
Overall Width (mm)2550
Overall Height (mm)3800
Ground Clearance (mm)247
Wheelbase (mm)5175
Axle Configuration8x4

Transmission & Loading Capacity

TransmissionManual
GVW / GCW (Kgs)35000 kg
Gear BoxG131HD, 9F+1R, Manual, Synchromesh Gears
Power SteeringYes
Clutch430 mm dia, Single Dry Plate Organic

Features

SteeringHydraulic Power assisted
Tiltable SteeringTilt and telescopic
Seat TypeStandard
Driver Information DisplayYes
Seating CapacityD+2
Seat BeltsYes
Hill HoldYes

Brakes & Suspension

BrakesPneumatic - Dual Line with Drum Brakes
Front SuspensionImproved Parabolic Type Leaf Spring with LC Bar and Hydraulic Shock Absorbers
Rear SuspensionBolster Bogie Suspension with shock absorbers
ABSYes
Parking BrakesPneumatic - Hand Control Valve
Front AxleIF 7.0 with Unitized Bearing
Rear AxleIRT 440-11 with inter-axle & Inter-wheel Diff lock

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionBox body
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre12
Rear Tyre11R20; 11x20 (O); 11x20 ML (O) with 8X20 wheel rim
Front Tyre11R20; 11x20 (O); 11x20 ML (O) with 8X20 wheel rim

Others

ChassisYes
Battery(Volts)24 V
Fog LightsYes

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
