Specifications

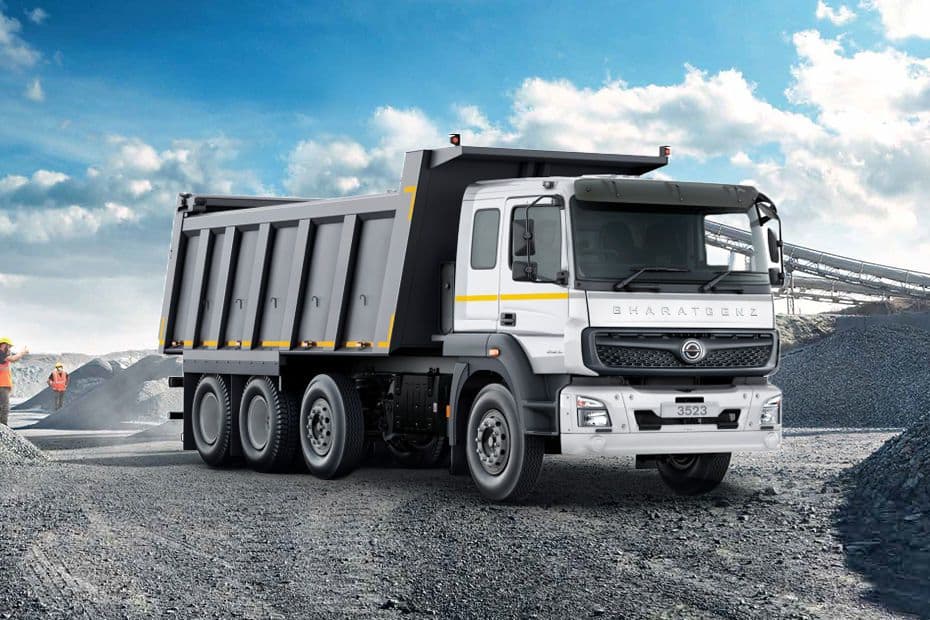

BharatBenz 3523RT

Explore BharatBenz 3523RT specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

3523RT

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineOM 926
TransmissionManual
Power180 kW

Performance

Fuel Tank (Litres)330/310 Ltr
EngineOM 926
Fuel TypeDiesel
Emission NormsBS VI-OBD-2
Max Torque850 Nm
Mileage2.75-3.75 kmpl
Max Speed (km/h)60
Engine Cylinders6

Dimension

Overall Length (mm)8835
Overall Width (mm)2490
Overall Height (mm)2965
Ground Clearance (mm)230
Wheelbase (mm)5775
Axle Configuration8x2

Transmission & Loading Capacity

TransmissionManual
Payload (Kgs)26300 Kgs
GVW / GCW (Kgs)35000 kg
Kerb Weight (Kgs)8787
Gear BoxG85, 6F+1R, Mechanical, Synchromesh Gears
Power SteeringYes
Clutch395mm Dia, Single plate, Dry type

Features

SteeringHydraulic Power assisted
A/CYes
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringTilt & Telescopic
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesPneumatic, Foot Operated, Dual Line Drum Brakes
Front SuspensionParabolic
Rear SuspensionBalancer
ABSYes
Parking BrakesYes
Front AxleIF 7.0
Rear AxleIR440+, IT-10

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionCustomizable body
Cabin TypeSleeper Cabin
Tiltable CabinYes

Tyres

Number of Tyre12
Rear Tyre295/90R20 Radial
Front Tyre295/90R20 Radial

Others

ChassisYes
Battery(Volts)24V
Fog LightsYes
Loading Platform Area(Sq.ft)196

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
