Specifications

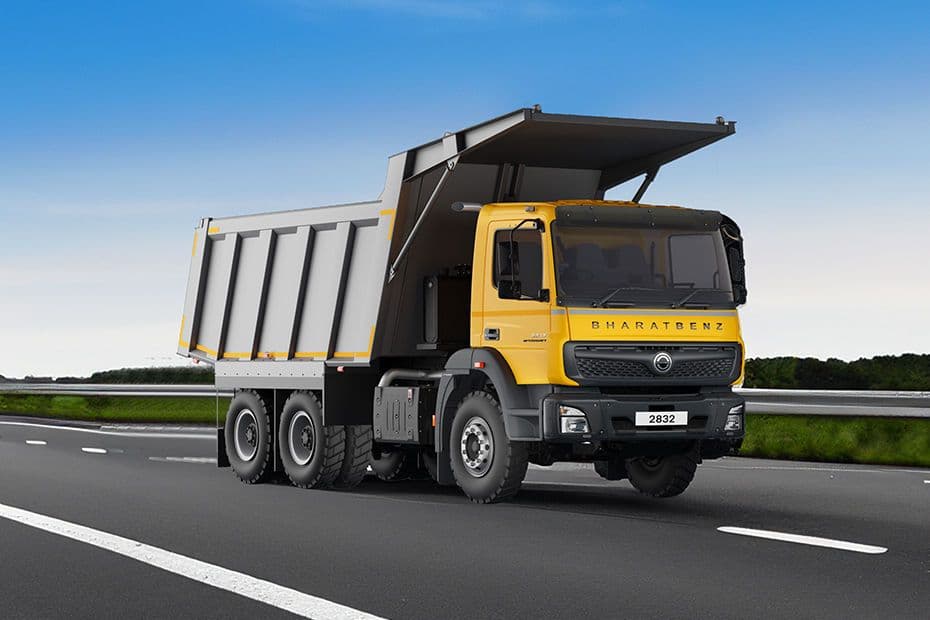

BharatBenz 2832CM TORQSHIFT

Explore BharatBenz 2832CM TORQSHIFT specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

2832CM TORQSHIFT

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineOM 926
TransmissionManual
Power316 hp

Performance

Fuel Tank (Litres)260 Ltr
EngineOM 926
Fuel TypeDiesel
Emission NormsBS-VI OBD-II
Max Torque1250 Nm
Mileage6.5 kmpl
Max Speed (km/h)60
Engine Cylinders6

Dimension

Overall Length (mm)8185
Overall Width (mm)2540
Overall Height (mm)3835
Ground Clearance (mm)349
Wheelbase (mm)4275
Axle Configuration6x4

Transmission & Loading Capacity

TransmissionManual
GVW / GCW (Kgs)28000 kg
Gear BoxTORQSHIFT, 12F+4R
Power SteeringYes
Clutch430 mm Single Dry Plate - Organic

Features

SteeringHydraulic Power assisted
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsYes
Tiltable SteeringTilt and telescopic
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesPneumatic - Dual Line Drum Brakes
Front Suspension4 Leaf Parabolic Leaf Spring
Rear SuspensionTandem, Multi Leaf Bogie
ABSYes
Parking BrakesYes
Front AxleIF10 (Forged - Reverse Elliot)
Rear AxleMT36 (Hub reduction)

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionCustomizable body
Cabin TypeDay Cabin
Tiltable CabinYes

Tyres

Number of Tyre10
Rear Tyre12x20 Mine Lug with 8.5x20 Wheel Rim
Front Tyre12x20 Mine Lug with 8.5x20 Wheel Rim

Others

ChassisYes
Battery(Volts)24 V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
