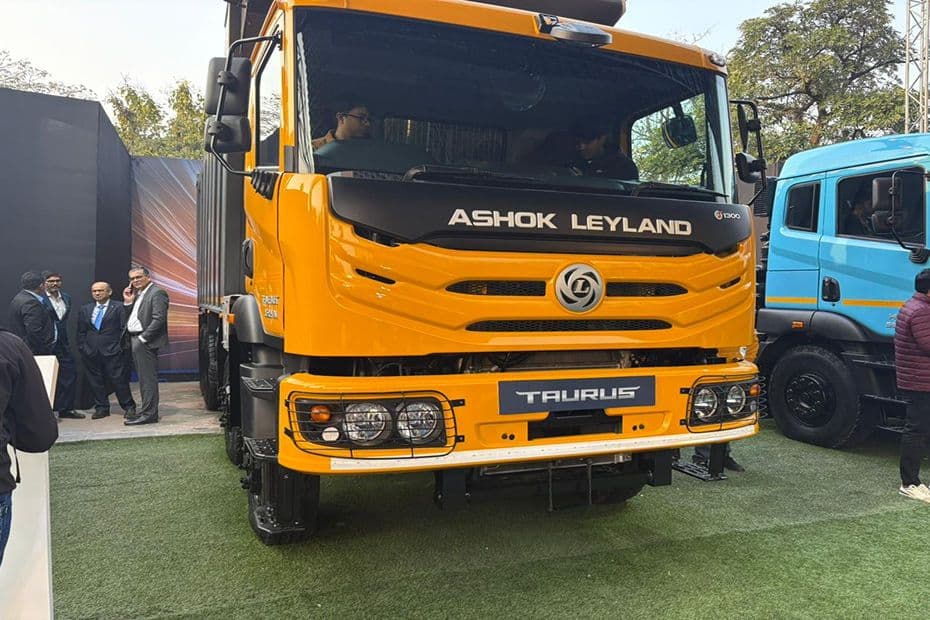

Ashok Leyland TAURUS 3532

Your questions, answered

• What is the GVW of the Ashok Leyland TAURUS 3532?
  It has a gross vehicle weight of 35,000 kg.

• Which engine does the TAURUS 3532 use?
  It uses an 8.0-litre A-series six-cylinder diesel producing 240 kW and 1300 Nm.

• What gearbox does it have?
  It has a 9-speed 1315 synchromesh gearbox with a 430 mm clutch.

• Which body options are available?
  On the 5250 mm wheelbase it is offered with a 19 cum rock body or a 23 or 26 cum box body.

• What rear axle options are available?
  It is offered with a single-reduction rear axle (5.2 ratio) or a hub-reduction rear axle (7.2 ratio) for mining.

• What suspension does it use?
  It uses 10.5-tonne parabolic front springs and a bogie rear suspension with rubber bolsters, both with anti-roll bars.

• Does it have ABS?
  Yes. It uses full air dual-line brakes with ABS.

• What is the fuel tank capacity?
  It has a 300-litre fuel tank.

• What tyres does it use?
  It runs on 12 tyres in 11R20 radial, 12x20 or 12x24 sizes.

• What is the turning radius?
  The turning radius is 18,940 mm.
