Specifications

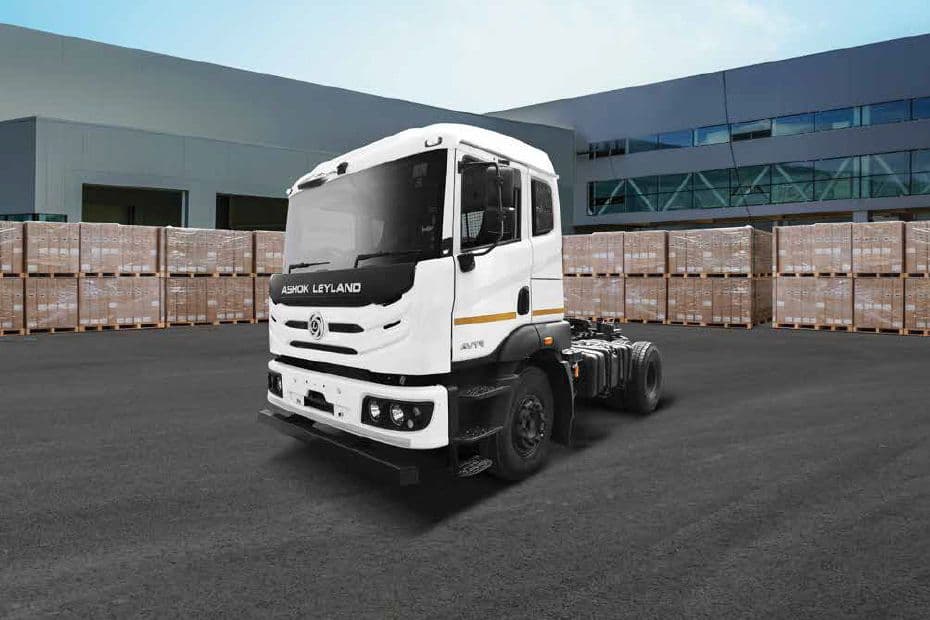

Ashok Leyland 4225 4x2

Explore Ashok Leyland 4225 4x2 specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

4225 4x2

Specifications & Features.

Key Specifications

Fuel TypeDiesel
EngineA series BS-VI with i-Gen6 technology
TransmissionManual
Power248 hp

Performance

Fuel Tank (Litres)375 Ltr
EngineA series BS-VI with i-Gen6 technology
Fuel TypeDiesel
Emission Norms???BS6
Max Torque900 Nm
Mileage6 kmpl
Max Speed (km/h)80
Engine Cylinders4

Dimension

Overall Length (mm)5950
Overall Width (mm)2570
Overall Height (mm)3177
Ground Clearance (mm)260
Wheelbase (mm)3400
Axle Configuration4x2

Transmission & Loading Capacity

TransmissionManual
GVW / GCW (Kgs)43500 kg
Gear Box9 speed synchromesh, 9 Forward + 1 Reverse
Power SteeringYes
Clutch395 mm dia-with air assisted hydraulic booster

Features

SteeringPower Steering
A/COptional
Cruise ControlNo
Navigation SystemNo
TelematicsYes
Tiltable SteeringTilt and telescopic
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesFull air dual line brakes with ABS
Front SuspensionParabolic springs Optional: Semi-elliptic multi leaf
Rear SuspensionSemi-elliptic multi leaf with parabolic helper springs
ABSYes
Parking BrakesActing on rear axle
Front AxleForged I section??"Reverse Elliot type
Rear AxleFully floating single speed rear axle

Body Option & Cabin Type

Chassis TypeCabin & chassis
Body OptionCustomizable body
Cabin TypePremium Cabin
Tiltable CabinHydraulically tiltable

Tyres

Number of Tyre6
Rear Tyre11R20
Front Tyre11R20

Others

ChassisYes
Battery(Volts)24V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
