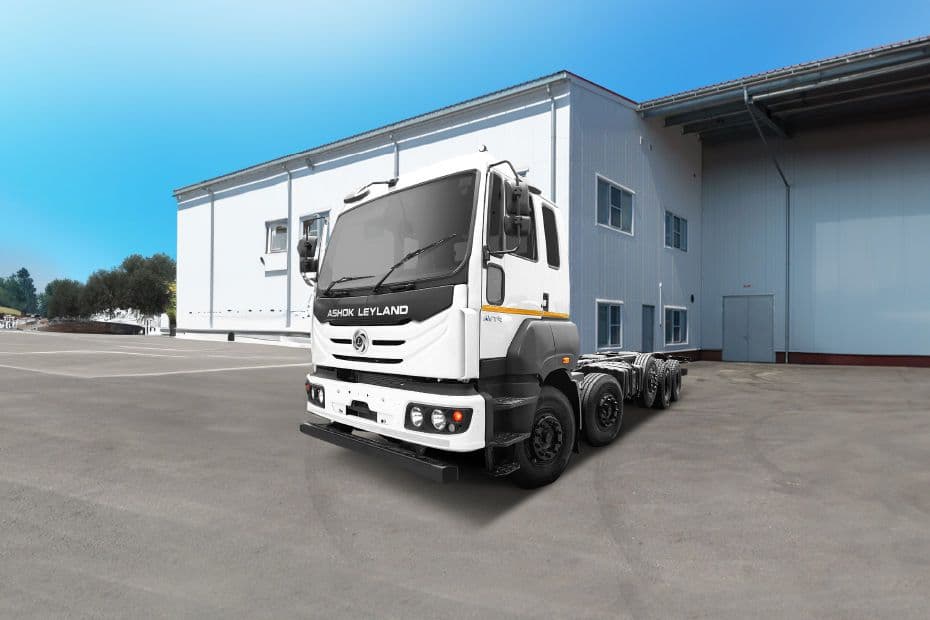

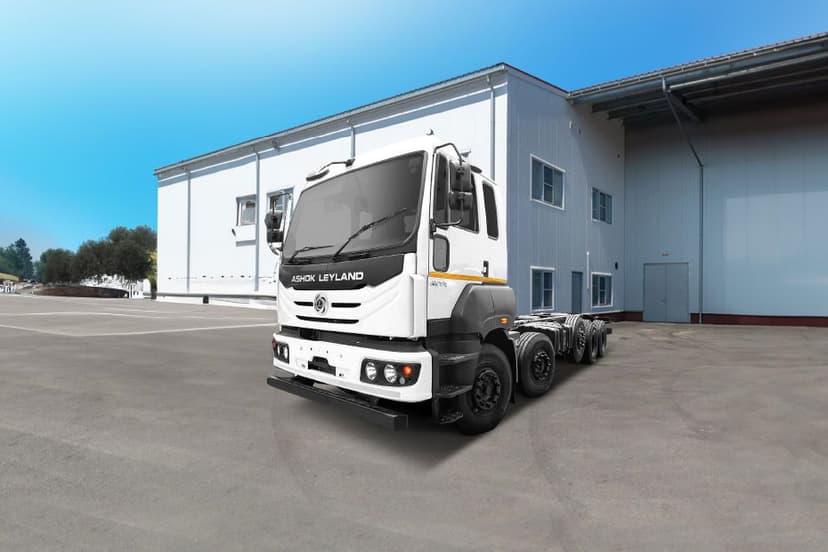

Ashok Leyland 4220-10x2 STLA

Your questions, answered

• What is the payload of the Ashok Leyland 4220 10x2 STLA?
  It carries a 29,000 kg payload, with a 42,000 kg GVW and a 13,000 kg kerb weight.

• Which engine does the 4220 STLA use?
  It uses Ashok Leyland's H-series CRS BS-VI six-cylinder diesel with i-Gen6 technology.

• What mileage does the 4220 STLA give?
  The claimed mileage is about 3.5 kmpl, and it has a 375-litre fuel tank.

• What deck lengths are available?
  It is offered with 28, 30 and 31 ft decks on a 6600 mm wheelbase.

• Is it available as a cowl chassis?
  Yes. It is offered as both a cabin-chassis and a cowl-chassis.

• What gearbox does it have?
  It has a 6-speed manual gearbox with a 380 mm organic clutch and an air-assisted hydraulic booster.

• How is it different from the 4225 STLA?
  The 4220 STLA uses a 6-speed gearbox and an H-series engine, while the 4225 STLA gets the A-series 250 hp engine and a 9-speed gearbox.

• Does it have ABS?
  Yes. ABS is standard with air brakes.

• What are its dimensions?
  It is 10,960 mm long, 2570 mm wide and 3110 mm tall, with 253 mm ground clearance.

• What tyres does it use?
  It runs on 14 tyres of size 295/90R20 16PR, and tubeless tyres are optional.
