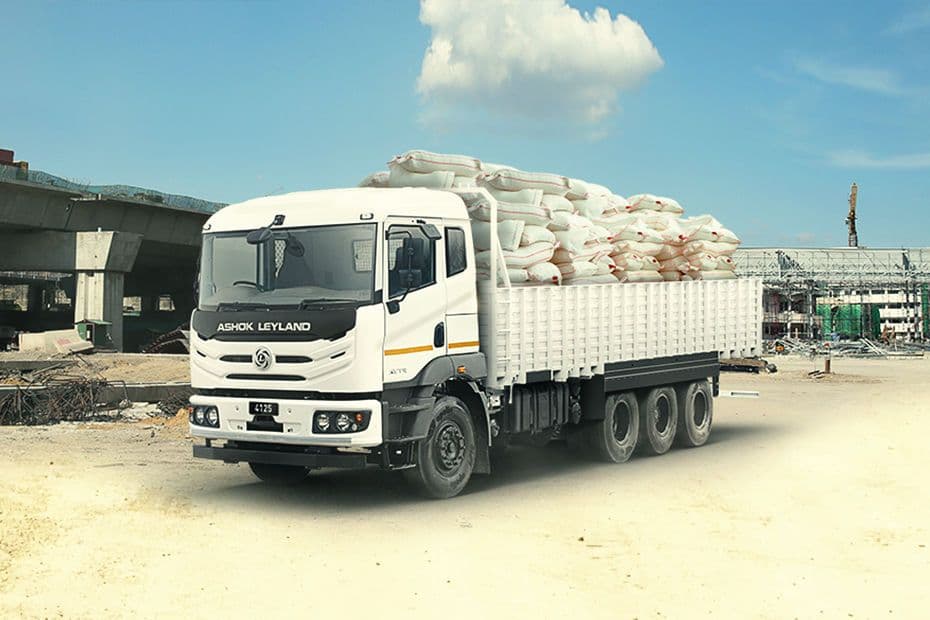

Ashok Leyland 4125-8x2 Specifications, Performance & Features.

Specifications & Features.

Key Specifications

Fuel TypeDiesel

EngineA Series BS VI – 4 cylinder CRS with i-Gen6 technology 250 H

TransmissionManual

Power248 hp

Performance

Fuel Tank (Litres)375 Ltr

EngineA Series BS VI – 4 cylinder CRS with i-Gen6 technology 250 H

Fuel TypeDiesel

Emission NormsBS VI

Max Torque900 Nm

Mileage4.25 kmpl

Max Speed (km/h)80

Engine Cylinders4

Dimension

Overall Length (mm)10960

Overall Width (mm)2570

Overall Height (mm)3177

Ground Clearance (mm)253

Wheelbase (mm)6000

Axle Configuration8x2

Loading Length {mm}10960

Loading Width {mm}2570

Transmission & Loading Capacity

TransmissionManual

Payload (Kgs)10000 Kgs

GVW / GCW (Kgs)40500 kg

Gear Box6 Speed Synchromesh

Power SteeringYes

Clutch395 mm dia – Single dry plate, ceramic clutch with air assisted hydraulic booster

Features

SteeringPower Steering

A/COptional

Cruise ControlNo

Navigation SystemNo

TelematicsYes

Tiltable SteeringRigid (In Cowl) Tilt and telescopic (U / N cab)

Arm-restNo

Seat TypeStandard

Brakes & Suspension

BrakesFull air Dual line with ABS

Front Suspensionsemi-elliptic multi leaf/ parabolic springs (optional)

Rear SuspensionNon-reactive suspension.Optional : Slipper ended suspension

ABSYes

Parking BrakesActing on rear axle

Front AxleForged I section- reverse Elliot type (Optional) unitized wheel bearings

Rear AxleFully floating single speed rear axle (Optional) unitized wheel bearings

Body Option & Cabin Type

Chassis TypeChassis with Cabin

Body OptionDeck Body

Cabin TypeDay and Slepper Cabin

Tiltable CabinHydraulically tiltable

Tyres

Number of Tyre14

Rear Tyre295/ 90R20- 16 PR

Front Tyre295/ 90R20- 16 PR

Others

ChassisYes

Battery(Volts)24 V

Fog LightsYes

Loading Platform Area(Sq.ft)200

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
