Specifications

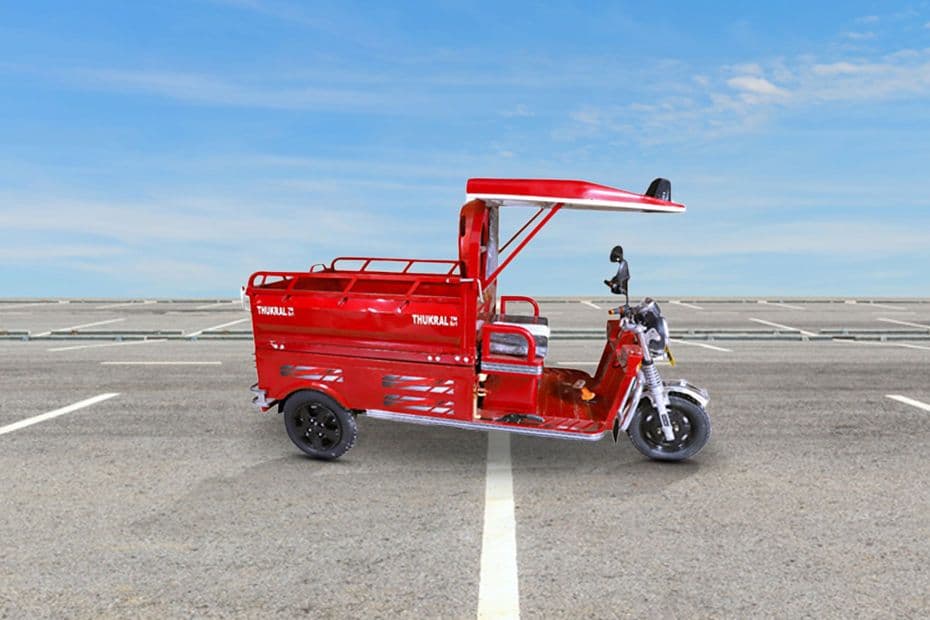

Thukral Electric EC 1

Explore Thukral Electric EC 1 specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

EC 1

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power1 hp

Performance

Max Power1 hp
Fuel TypeElectric
Gradeability (%)14 %
Max Speed (km/h)25
Turning Radius (mm)3000
Range80-90
Battery Capacity130 Ah
Product TypeL3N (Low Speed Goods Carrier)

Charging

Charging Time6-8 Hour

Dimension

Overall Length (mm)2776
Overall Width (mm)1384
Overall Height (mm)965
Ground Clearance (mm)180
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionAutomatic
Kerb Weight (Kgs)316
Power SteeringNo
GVW / GCW (Kgs)450 kg
Gear Box1 Forward + 1 Reverse
Payload (Kgs)312 Kgs

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brakes
Front SuspensionHydraulic Heavy Duty Shock Absorbers
Rear SuspensionLeaf Spring Telescopic Suspension
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionDeck Body
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre3.75x12
Front Tyre3.75x12

Others

ChassisYes
Battery(Volts)12 V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
