Specifications

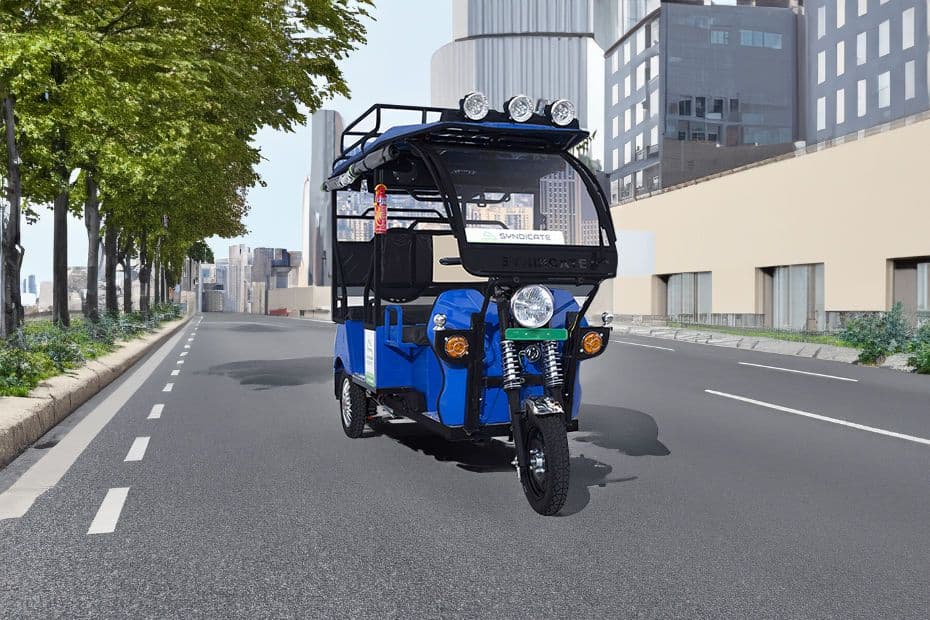

Syndicate E-Rickshaw

Explore Syndicate E-Rickshaw specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

E-Rickshaw

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power1 hp

Performance

Max Power1 hp
Fuel TypeElectric
Max Speed (km/h)30
Turning Radius (mm)3200
Range120 Km
Battery Capacity135 Ah
Product TypeL3M (Low Speed Passenger Carrier)
Carrier TypePassenger Carrier

Charging

Charging Time6-7 hours

Dimension

Overall Length (mm)2790
Overall Width (mm)1795
Overall Height (mm)970
Ground Clearance (mm)230
Wheelbase (mm)2180
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionAutomatic
Kerb Weight (Kgs)378
Power SteeringNo
GVW / GCW (Kgs)750 kg
Gear Box1 Forward + 1 Reverse

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brakes
Front Suspension43mm heavy duty shocker
Rear Suspension43mm heavy duty shocker
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionFully Built
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3

Others

ChassisYes
Battery(Volts)48 V
Fog LightsYes

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
