Specifications

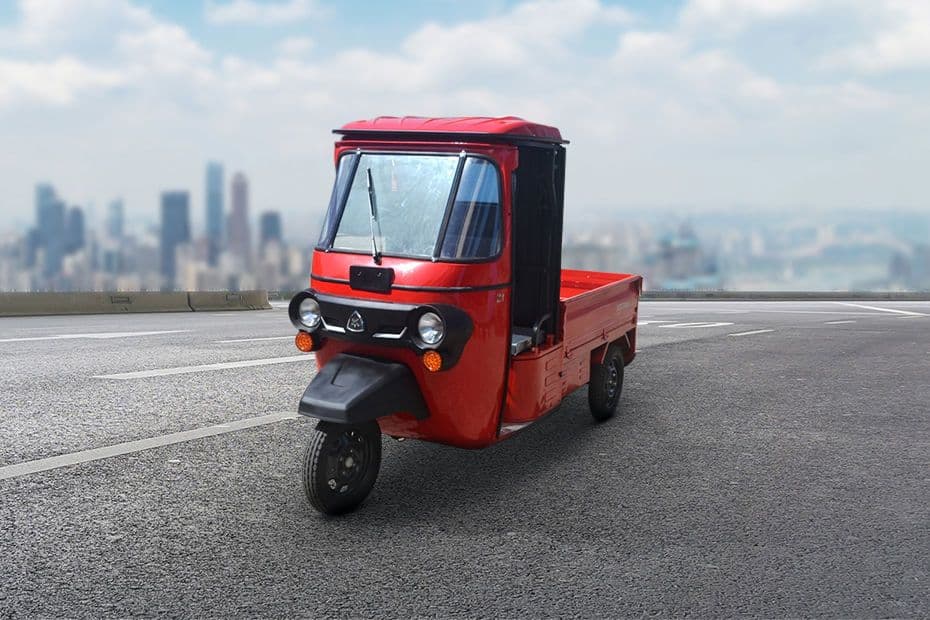

Star Electrika-Z1

Explore Star Electrika-Z1 specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Electrika-Z1

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionDirect Drive
Power2 hp

Performance

Max Power2 hp
Fuel TypeElectric
Gradeability (%)7 %
Max Speed (km/h)25
Turning Radius (mm)3100
Range100
Battery Capacity23.04
Product TypeL3N (Low Speed Goods Carrier)

Charging

Charging Time8-10 hr

Dimension

Overall Length (mm)2790
Overall Width (mm)990
Overall Height (mm)1750
Ground Clearance (mm)200
Wheelbase (mm)2180
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionDirect Drive
Kerb Weight (Kgs)364
Power SteeringNo
GVW / GCW (Kgs)1500 kg
Gear Box1 Forward + 1 Reverse
Payload (Kgs)600 Kgs

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesMechanical
Front SuspensionHelical Spring + Dampener + Hydraulic Shock Absorber
Rear SuspensionRigid Axel with Leaf Spring
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionDeck Body
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre90/90-12
Front Tyre90/90-12

Others

ChassisYes
Battery(Volts)48 V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
