Specifications

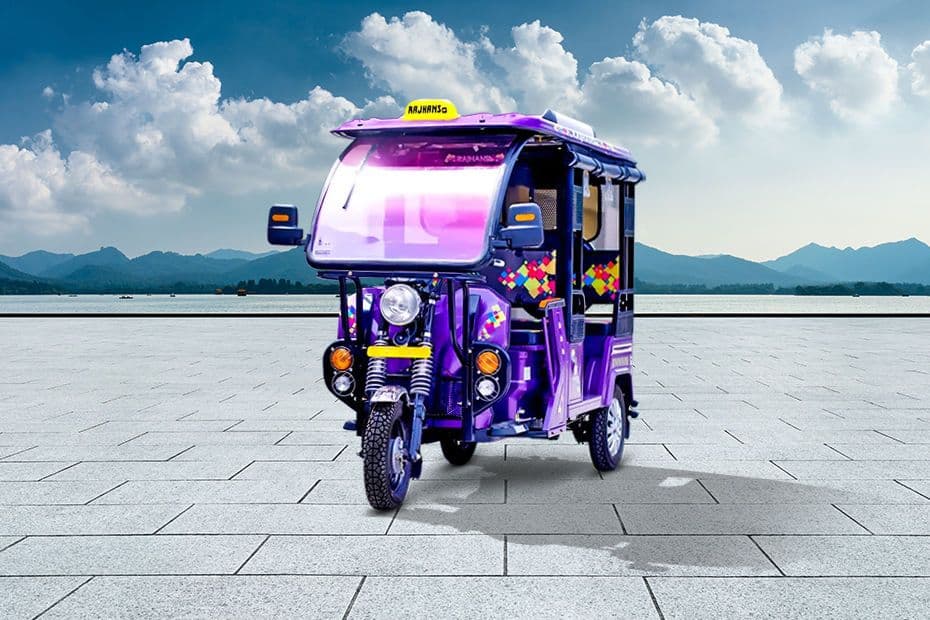

Rajhans Plus

Explore Rajhans Plus specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Plus

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power1 hp

Performance

Max Power1 hp
Fuel TypeElectric
Max Speed (km/h)25
Turning Radius (mm)5248
Battery Capacity200 Ah
Product TypeL3M (Low Speed Passenger Carrier)
Carrier TypePassenger Carrier
Type of MotorBLDC Motor

Charging

Charging Time4-5 Hours

Dimension

Overall Length (mm)2765
Overall Width (mm)998
Overall Height (mm)1778
Ground Clearance (mm)170
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionAutomatic
Kerb Weight (Kgs)250
Power SteeringNo
GVW / GCW (Kgs)750 kg
Gear Box1 Forward + 1 Reverse

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brake
Front SuspensionHeavy Duty Front Shock Absorbers
Rear SuspensionLeaf Spring
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionFully Built
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre3.75-12
Front Tyre3.75-12

Others

ChassisYes
Battery(Volts)48 V
Fog LightsNo
Alternator (Amps)20

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
