Specifications

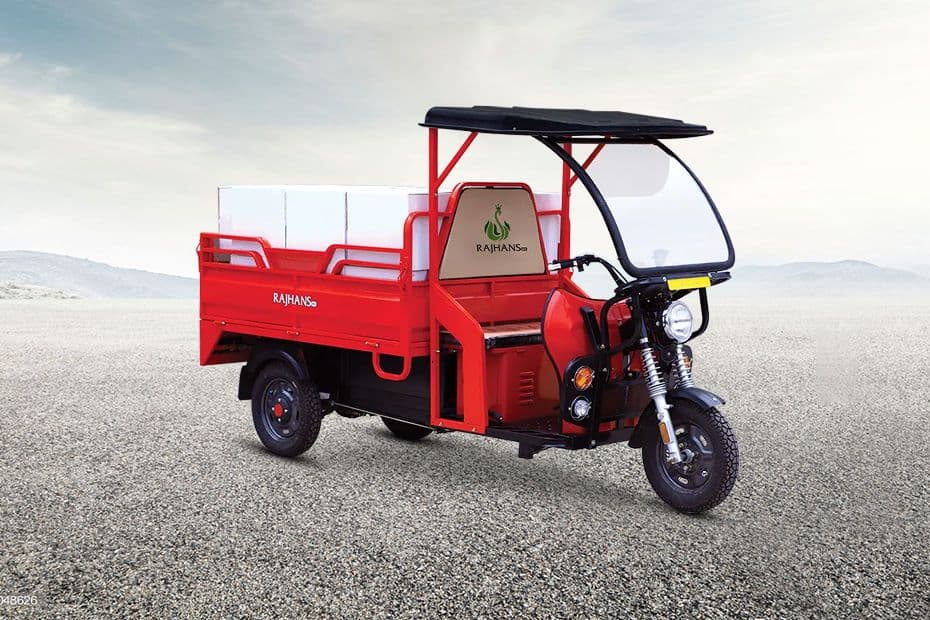

Rajhans Cargo

Explore Rajhans Cargo specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Cargo

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power1 hp

Performance

Max Power1 hp
Fuel TypeElectric
Max Speed (km/h)25
Turning Radius (mm)4800
Range140
Battery Capacity150 Ah
Product TypeL3N (Low Speed Goods Carrier)
Carrier TypeGoods Carrier

Charging

Charging Time8-10 Hour

Dimension

Overall Length (mm)3000
Overall Width (mm)1200
Overall Height (mm)1800
Ground Clearance (mm)170
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionAutomatic
Kerb Weight (Kgs)100
Power SteeringNo
GVW / GCW (Kgs)500 kg
Gear Box1 Forward + 1 Reverse
Payload (Kgs)800 Kgs

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brake
Front SuspensionHeavy Duty Front Shock Absorbers
Rear SuspensionLeaf Spring
Parking BrakesYes
ABSYes

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionDeck Body
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre3.75-12
Front Tyre3.75-12

Others

ChassisYes
Battery(Volts)12 V
Fog LightsNo
Alternator (Amps)20

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
