Specifications

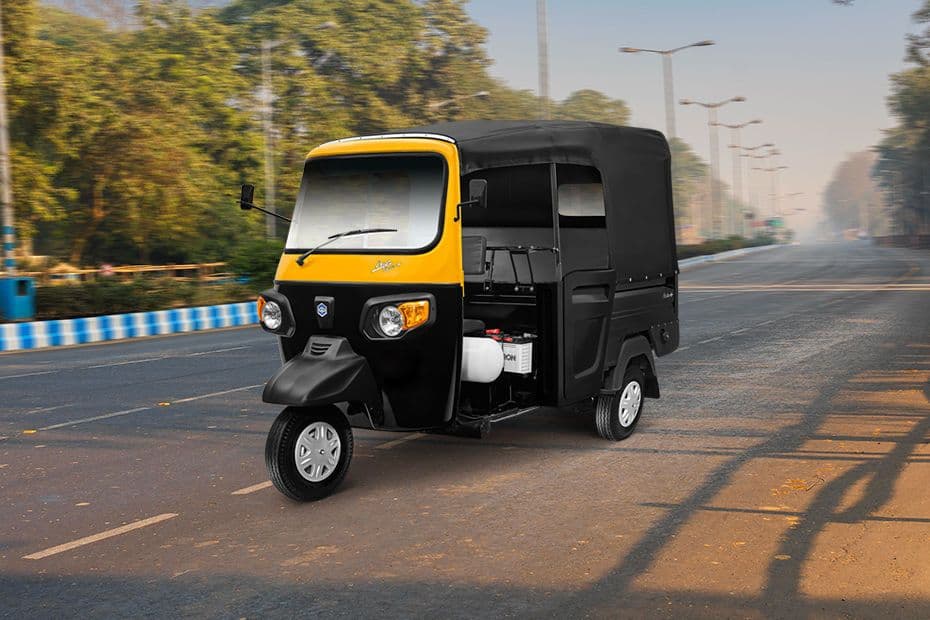

Piaggio Ape Auto Plus

Explore Piaggio Ape Auto Plus specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Ape Auto Plus

Specifications & Features.

Key Specifications

Fuel TypeDiesel
Engine597 cc
TransmissionManual
Power7 kW

Performance

Max Power7 kW
Fuel TypeDiesel
Gradeability (%)23.8 %
Max Speed (km/h)60
Turning Radius (mm)4200
Battery Capacity50 Ah
Product TypeL3M (Low Speed Passenger Carrier)
Carrier TypePassenger Carrier

Dimension

Overall Length (mm)3120
Overall Width (mm)1470
Overall Height (mm)1950
Ground Clearance (mm)240
Wheelbase (mm)2100
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionManual
Kerb Weight (Kgs)518
Power SteeringNo
GVW / GCW (Kgs)968 kg
Gear Box5 Forward, 1 Reverse (Constant Mesh)
ClutchMulti Plate Wet Type

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brake Hydraulicaly Actuated Internal Expanding Shoe Type
Front SuspensionHydraulic Telescopic Shock Absorber With Helical Compression Spring with dampener
Rear SuspensionHydraulic Telescopic Shock Absorber With Helical Compression Spring with dampener
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Vehicle TypeAuto Rickshaw
Chassis TypeChassis with Cabin
Body OptionFully Built
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre4.50-10, 8 PR
Front Tyre4.50-10, 8 PR

Others

ChassisYes
Battery(Volts)12 V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
