Specifications

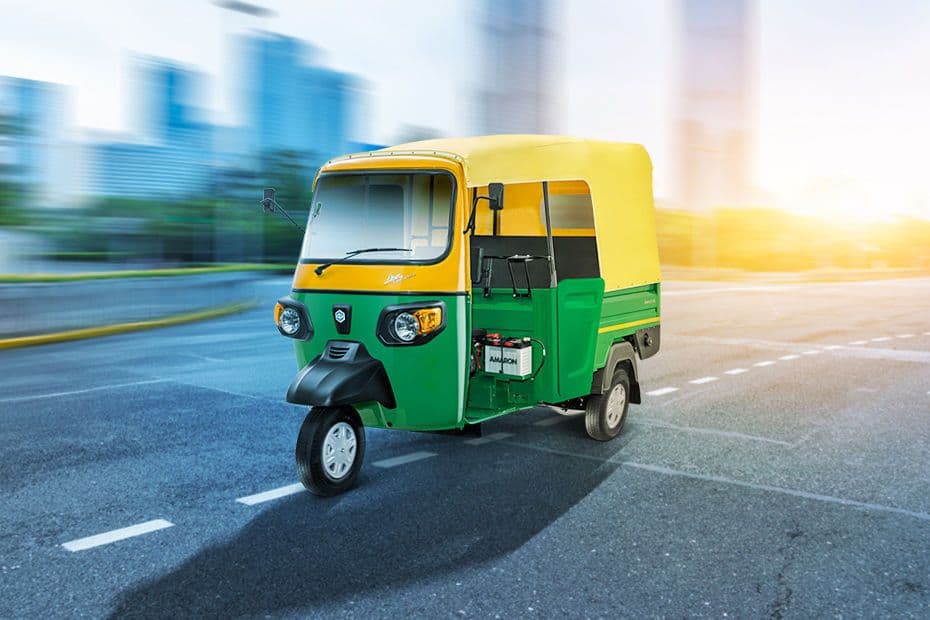

Piaggio Ape Auto DXL

Explore Piaggio Ape Auto DXL specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Ape Auto DXL

Specifications & Features.

Key Specifications

Fuel TypeDiesel
Engine599 cc
TransmissionManual
Power7 kW

Performance

Max Power7 kW
Fuel TypeDiesel
Gradeability (%)23.8 %
Max Speed (km/h)60
Battery Capacity50 Ah
Product TypeL3M (Low Speed Passenger Carrier)
Carrier TypePassenger Carrier
Engine Displacement (cc)599 cc

Dimension

Overall Length (mm)3140
Overall Width (mm)1465
Overall Height (mm)1950
Ground Clearance (mm)240
Wheelbase (mm)2100

Transmission & Loading Capacity

TransmissionManual
Kerb Weight (Kgs)506
Power SteeringNo
GVW / GCW (Kgs)806 kg
Gear Box5 Forward + 1 Reverse (Constant Mesh)
ClutchMulti Disc Wet Type

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesDrum Brake Hydraulicaly Actuated Internal Expanding Shoe Type
Front SuspensionHydraulic Telescopic Shock Absorber With Helical Compression Spring with dampener
Rear SuspensionHydraulic Telescopic Shock Absorber With Rubber Compression Spring with dampener
Parking BrakesYes
ABSNo
Front AxleRigid front axle

Body Option & Cabin Type

Vehicle TypeAuto Rickshaw
Chassis TypeChassis with Cabin
Body OptionFully Built
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre4.50-10, 8 PR
Front Tyre4.50-10, 8 PR

Others

ChassisYes
Battery(Volts)12 V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
