Specifications

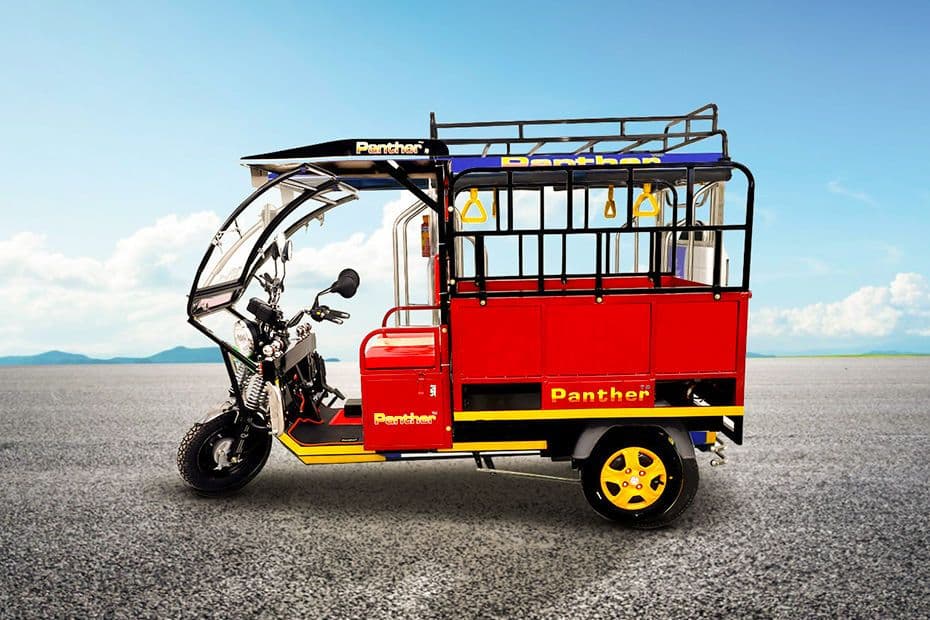

Panther Loader

Explore Panther Loader specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Loader

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power2 hp

Performance

Max Power2 hp
Fuel TypeElectric
Gradeability (%)7 %
Max Speed (km/h)25
Range100
Battery Capacity120 Ah
Product TypeL3N (Low Speed Goods Carrier)
Carrier TypeGoods Carrier

Charging

Charging Time6 Hour

Dimension

Overall Length (mm)2780
Overall Width (mm)985
Overall Height (mm)1755
Ground Clearance (mm)170
Wheelbase (mm)1800
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionAutomatic
Kerb Weight (Kgs)350
Power SteeringNo
GVW / GCW (Kgs)500 kg
Gear Box1 Forward + 1 Reverse
Clutch43 mm dia Hydraulic

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesHeavy duty Mechanical
Front SuspensionHydraulic Heavy Duty Shock Absorbers
Rear SuspensionLeaf Spring Suspension
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionFully Built
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre(3.75-12) / (90-90/12)
Front Tyre(3.75-12) / (90-90/12)

Others

ChassisYes
Battery(Volts)48V
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
