Specifications

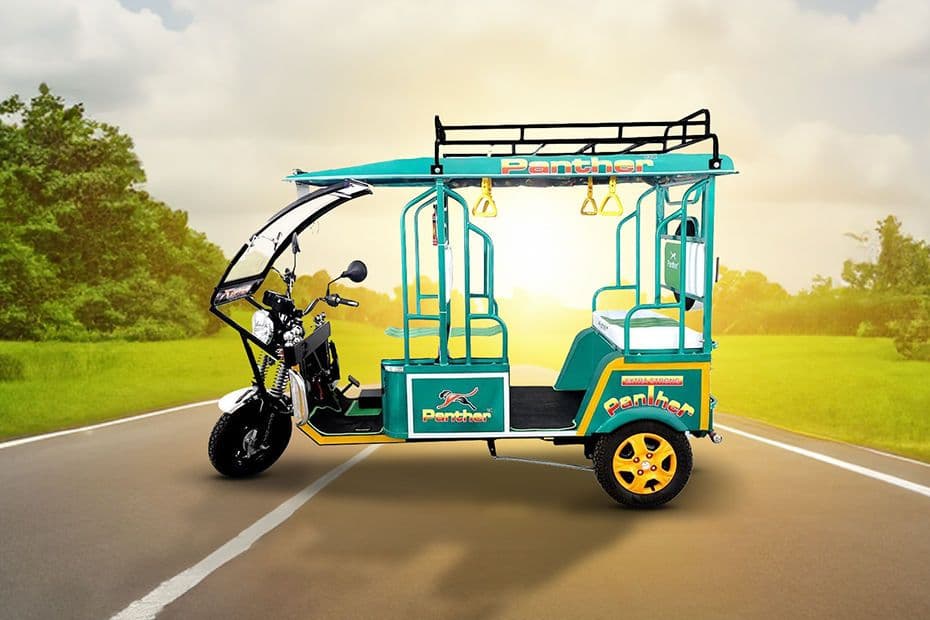

Panther Deluxe

Explore Panther Deluxe specifications & features across all variants — engine, dimensions, safety and more.

Price on Request

Ex-showroom Price

Deluxe

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power1 hp

Performance

Max Power1 hp
Fuel TypeElectric
Gradeability (%)10 %
Max Speed (km/h)25
Turning Radius (mm)3000
Range100
Battery Capacity90 Ah
Product TypeL3M (Low Speed Passenger Carrier)

Charging

Charging Time6 hours

Dimension

Overall Length (mm)2715
Overall Width (mm)980
Overall Height (mm)1760
Ground Clearance (mm)207
Wheelbase (mm)1980
Axle Configuration3x3

Transmission & Loading Capacity

TransmissionAutomatic
Kerb Weight (Kgs)500
Power SteeringNo
GVW / GCW (Kgs)1180 kg
Gear Box1 Forward + 1 Reverse
Clutch43 mm Hydraulic

Features

SteeringHandle bar type
A/CNo
Cruise ControlNo
Navigation SystemNo
TelematicsNo
Tiltable SteeringNo
Arm-restNo
Seat TypeStandard

Brakes & Suspension

BrakesHeavy duty Mechanical Brake
Front SuspensionMac Pherson Strut
Rear SuspensionLeaf Spring Suspension
Parking BrakesYes
ABSNo

Body Option & Cabin Type

Chassis TypeChassis with Cabin
Body OptionFully Built
Cabin TypeDay Cabin
Tiltable CabinNo

Tyres

Number of Tyre3
Rear Tyre(3.75-12)/(90-90/12)
Front Tyre(3.75-12)/(90-90/12)

Others

ChassisYes
Battery(Volts)48V Lead-Acid & Lithium-ion (optional)
Fog LightsNo

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
